926522-1

Active

TE Connectivity AMP Connectors

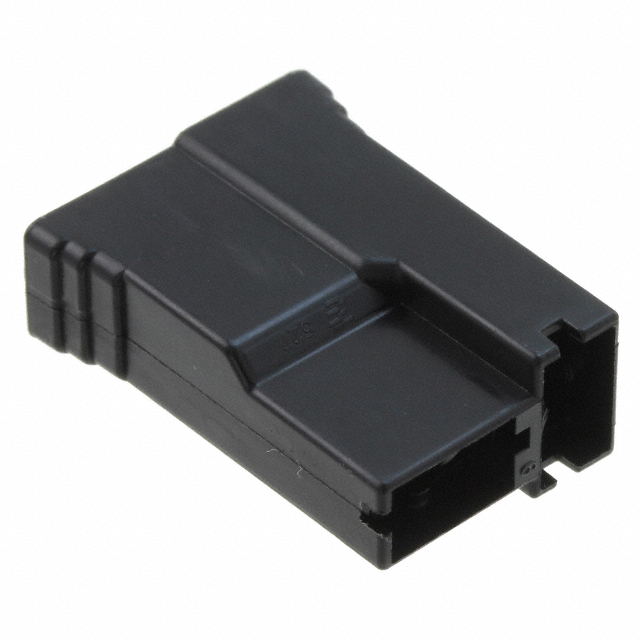

CONN RCPT HSG 0.25 2POS BLACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 2POS BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	926522-1	926522 Series

Color	Black	Natural, Black
For Use With/Related Products	0.25 in	0.25 in
For Use With/Related Products	Quick Connects	Quick Connects
For Use With/Related Products	6.35 mm	6.35 mm
Gender	Female, Receptacle	Female, Receptacle
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Stacking Direction	Perpendicular	Perpendicular
Style	Housing	Housing
Terminal Size	6.35 mm	6.35 mm
Terminal Size	0.25 in	0.25 in
Terminal Type	Disconnect, Quick Connect	Disconnect, Quick Connect

CONN RCPT HSG 0.25 2POS NATURAL

Part	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Terminal Size	Terminal Size	Stacking Direction	Material	Mounting Type	Terminal Type	Color	Note	Gender	Number of Positions	Style
TE Connectivity AMP Connectors 926522-2	0.25 in	Quick Connects	6.35 mm	6.35 mm	0.25 in	Perpendicular	Polyamide (PA), Nylon	Free Hanging (In-Line)	Disconnect, Quick Connect	Natural	Contacts Not Included	Female, Receptacle	2	Housing
TE Connectivity AMP Connectors 926522-1	0.25 in	Quick Connects	6.35 mm	6.35 mm	0.25 in	Perpendicular	Polyamide (PA), Nylon	Free Hanging (In-Line)	Disconnect, Quick Connect	Black	Contacts Not Included	Female, Receptacle	2	Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Housing Connector Female, Receptacle Black 0.250" (6.35mm)
