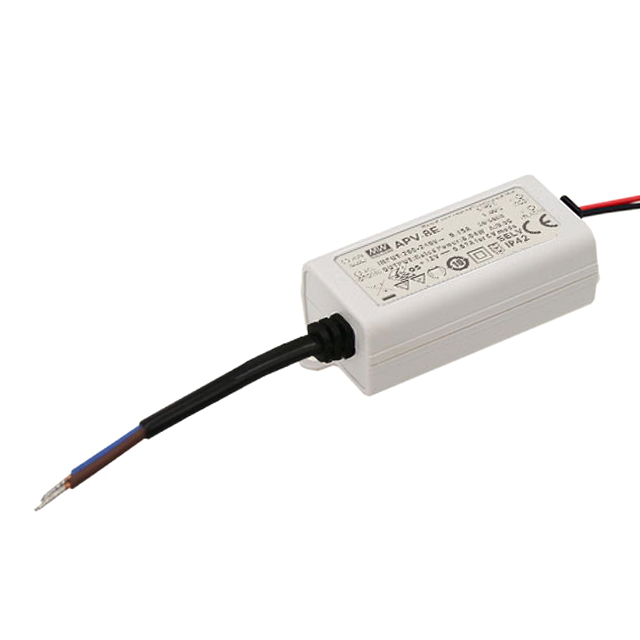

APV-8E-24

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 340MA

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 340MA

Technical Specifications

Parameters and characteristics commom to parts in this series

LED DRIVER CV AC/DC 24V 340MA

Part	Approval Agency	Number of Outputs	Ratings	Voltage - Input (Max) [Max]	Voltage - Isolation	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Termination Style	Efficiency	Voltage - Output	Type	Current - Output (Max) [Max]	Features	Topology	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
MEAN WELL USA Inc. APV-8E-24	CB, CE, ENEC	1	IP42	264 VAC	3750 V	Chassis Mount	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	180 VAC	Wire Leads	78.5 %	24 V	Constant Voltage	340 mA	OCP, OVP, SCP	AC DC Converter	8 W	70 °C	-30 ░C
MEAN WELL USA Inc. APV-8-5	CCC, CE, cURus	1	IP42	264 VAC	3750 V	Chassis Mount	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	90 VAC	Wire Leads	74 %	5 V	Constant Voltage	1.4 A	OCP, OVP, SCP	AC DC Converter	7 W	70 °C	-30 ░C
MEAN WELL USA Inc. APV-8E-12	CB, CE, ENEC	1	IP42	264 VAC	3750 V	Chassis Mount	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	180 VAC	Wire Leads	77.5 %	12 V	Constant Voltage	670 mA	OCP, OVP, SCP	AC DC Converter	8 W	70 °C	-30 ░C
MEAN WELL USA Inc. APV-8E-5	CB, CE, ENEC	1	IP42	264 VAC	3750 V	Chassis Mount	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	180 VAC	Wire Leads	74 %	5 V	Constant Voltage	1.4 A	OCP, OVP, SCP	AC DC Converter	7 W	70 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.31

General part information

340mA 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
