ACZ09BR1E-15FA1-30C15P
ActiveCUI Devices

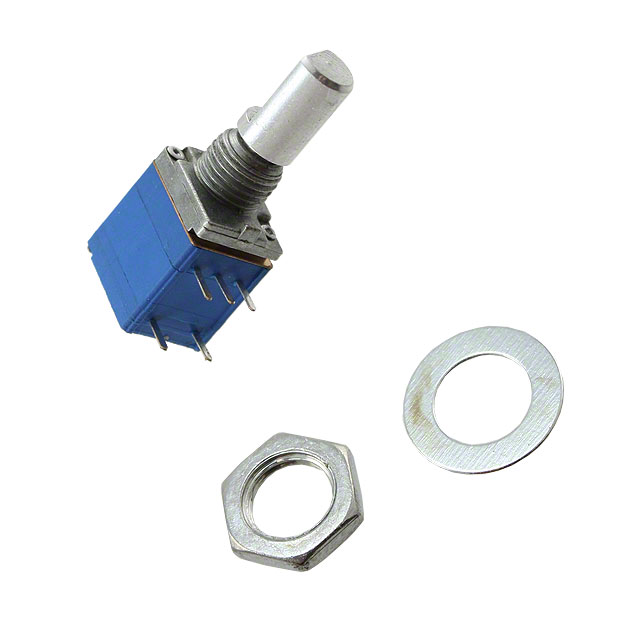

ROTARY ENCODER INCREMENT 15PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACZ09BR1E-15FA1-30C15P
ActiveCUI Devices
ROTARY ENCODER INCREMENT 15PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACZ09BR1E-15FA1-30C15P | ACZ09BR1 Series |
|---|---|---|
| Actuator Type | Flatted End | Knurled End, Flatted End |
| Actuator Type [diameter] | 6 mm | 6 mm |
| Built in Switch | True | True |
| Detent | True | True |
| Encoder Type | Incremental | Incremental |
| Mounting Type | PCB Through Hole, Panel | PCB Through Hole, Panel |
| Orientation | Right Angle | Right Angle, Vertical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 15 | 10 - 20 |
| Rotational Life (Cycles Min) [Min] | 30K | 30K |
| Termination Style | PC Pin | PC Pin |
ACZ09BR1 Series
ROTARY ENCODER INCREMENT 20PPR
| Part | Built in Switch | Pulses per Revolution | Mounting Type | Rotational Life (Cycles Min) [Min] | Output Type | Detent | Termination Style | Actuator Type [diameter] | Actuator Type | Orientation | Encoder Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices ACZ09BR1E-15KQA1-20C | 20 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Knurled End | Right Angle | Incremental | ||
CUI Devices ACZ09BR1E-20FD1-20C | 20 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Flatted End | Vertical | Incremental | ||
CUI Devices ACZ09BR1E-20KQD1-20C | 20 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Knurled End | Vertical | Incremental | ||
CUI Devices ACZ09BR1E-20FA1-20C | 20 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Flatted End | Right Angle | Incremental | ||
CUI Devices ACZ09BR1E-20FD1-20C10P | 10 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Flatted End | Vertical | Incremental | ||
CUI Devices ACZ09BR1E-15FA1-30C15P | 15 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Flatted End | Right Angle | Incremental | ||
CUI Devices ACZ09BR1E-15KQA1-30C15P | 15 | Panel, PCB Through Hole | 30K | Quadrature (Incremental) | PC Pin | 6 mm | Knurled End | Right Angle | Incremental |
