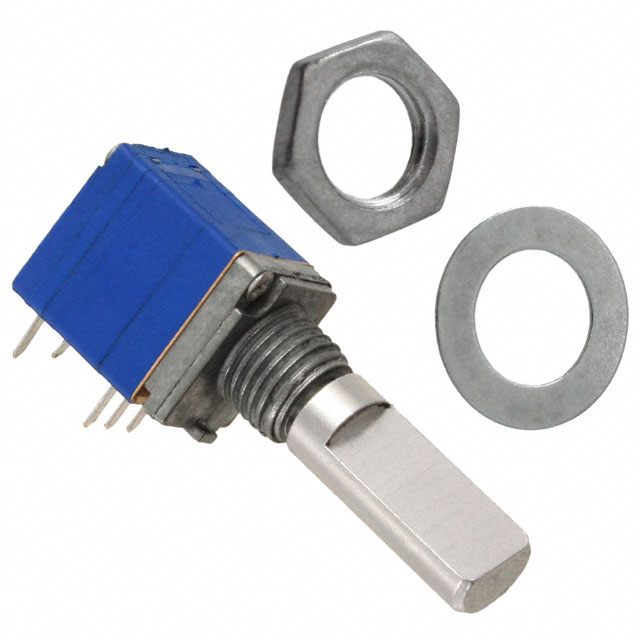

ACZ09BR1E-20FA1-20C

Active

CUI Devices

ROTARY ENCODER INCREMENT 20PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER INCREMENT 20PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1020	$ 2.35

General part information

Rotary Encoder Incremental 20 Quadrature (Incremental) Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ACZ09BR1E-20FA1-20C	ACZ09BR1 Series

Actuator Type	Flatted End	Knurled End, Flatted End
Actuator Type [diameter]	6 mm	6 mm
Built in Switch	True	True
Detent	True	True
Encoder Type	Incremental	Incremental
Mounting Type	PCB Through Hole, Panel	PCB Through Hole, Panel
Orientation	Right Angle	Right Angle, Vertical
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	20	10 - 20
Rotational Life (Cycles Min) [Min]	30K	30K
Termination Style	PC Pin	PC Pin

ROTARY ENCODER INCREMENT 20PPR

Part	Pulses per Revolution	Mounting Type	Rotational Life (Cycles Min) [Min]	Output Type	Termination Style	Actuator Type [diameter]	Actuator Type	Orientation	Encoder Type
CUI Devices ACZ09BR1E-15KQA1-20C	20	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Knurled End	Right Angle	Incremental
CUI Devices ACZ09BR1E-20FD1-20C	20	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Flatted End	Vertical	Incremental
CUI Devices ACZ09BR1E-20KQD1-20C	20	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Knurled End	Vertical	Incremental
CUI Devices ACZ09BR1E-20FA1-20C	20	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Flatted End	Right Angle	Incremental
CUI Devices ACZ09BR1E-20FD1-20C10P	10	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Flatted End	Vertical	Incremental
CUI Devices ACZ09BR1E-15FA1-30C15P	15	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Flatted End	Right Angle	Incremental
CUI Devices ACZ09BR1E-15KQA1-30C15P	15	Panel, PCB Through Hole	30K	Quadrature (Incremental)	PC Pin	6 mm	Knurled End	Right Angle	Incremental
