SFW4S-2STE1LF

Active

Amphenol ICC (FCI)

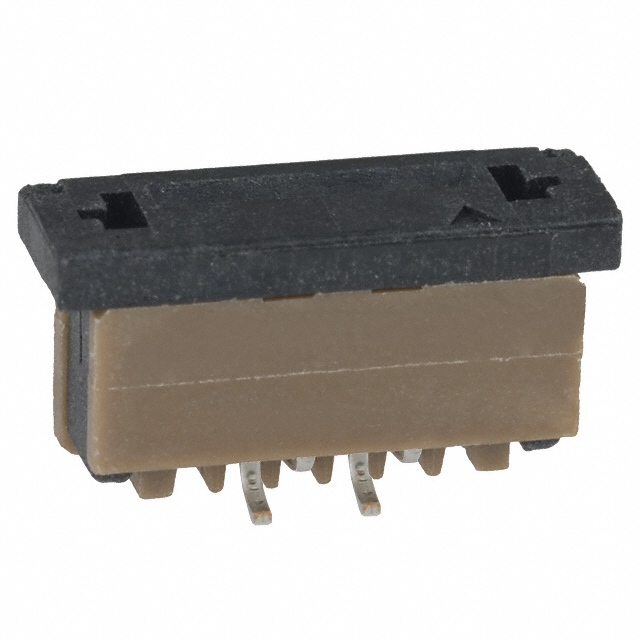

CONN FFC FPC VERT 4POS 1MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFW10S-2STE1LF SFW28S-2STAE1LF +2

SFW4S-2STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 4POS 1MM SMD

Deep-Dive with AI

DocumentsSFW10S-2STE1LF SFW28S-2STAE1LF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW4S-2STE1LF

Actuator Material	Thermoplastic, Glass Filled
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.3 mm
Height Above Board	0.209 in
Housing Color	Brown
Housing Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

SFW4S Series

Part	Termination	Contact Finish	Height Above Board	Height Above Board	Mating Cycles	Number of Positions	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Actuator Material	Mounting Type	Housing Color	Flat Flex Type	Material Flammability Rating	Connector/Contact Type	Contact Material	Voltage Rating	FFC, FCB Thickness [z]	Features	Cable End Type	Locking Feature	Actuator Color
Amphenol ICC (FCI) SFW4S-2STE1LF	Solder	Tin	5.3 mm	0.209 in	20	4	0.33 mm	0.039 in	1 mm	105 ░C	-55 °C	Thermoplastic Glass Filled	Thermoplastic Glass Filled	Surface Mount	Brown	FFC FPC	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	100 V
Amphenol ICC (FCI) SFW4S-2STME1	Solder	Tin Alloy	5.3 mm	0.209 in	20	4		0.039 in	1 mm	85 °C	-55 °C	Thermoplastic Glass Filled	Thermoplastic Glass Filled	Surface Mount	Brown	FFC FPC	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	100 V	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	Slide Lock	Black
Amphenol ICC (FCI) SFW4S-2STAE1LF	Solder	Gold	5.3 mm	0.209 in	20	4	0.33 mm	0.039 in	1 mm	85 °C	-55 °C	Thermoplastic Glass Filled	Thermoplastic Glass Filled	Surface Mount	Brown	FPC	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	100 V
Amphenol ICC (FCI) SFW4S-2STMAE9LF	Solder	Gold	5.3 mm	0.209 in		4	0.3 mm	0.039 in	1 mm					Surface Mount	Brown	FPC		Contacts Vertical - 1 Sided	Phosphor Bronze				Tapered	Slide Lock	Black
Amphenol ICC (FCI) SFW4S-6STME1LF	Solder	Tin	5.3 mm	0.209 in	10	4	0.33 mm	0.039 in	1 mm	85 °C	-55 °C	Thermoplastic Glass Filled	Thermoplastic Glass Filled	Surface Mount	Brown	CIC	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	100 V
Amphenol ICC (FCI) SFW4S-2STE9LF	Solder	Tin	5.3 mm	0.209 in	20	4		0.039 in	1 mm	85 °C	-55 °C	Thermoplastic Glass Filled	Thermoplastic Glass Filled	Surface Mount	Brown	FFC FPC	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	100 V	0.3 mm 0.33 mm		Straight Tapered	Slide Lock	Black
