Q-0D02000031.5M

Active

Amphenol Custom Cable

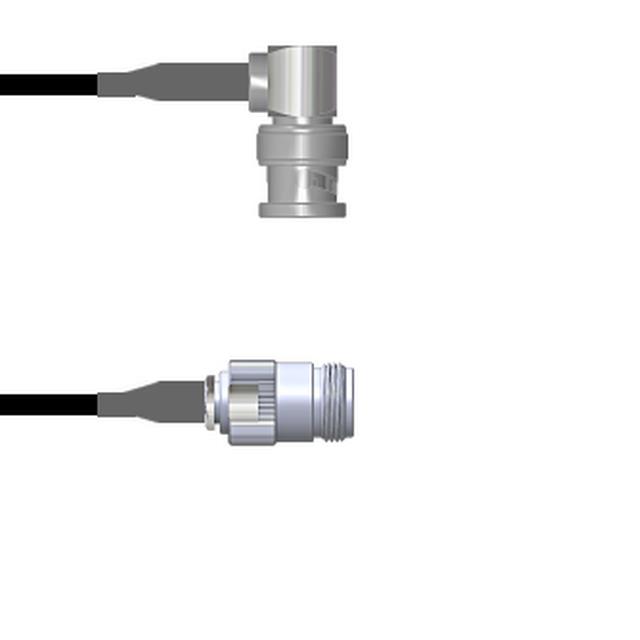

COAX CBL BNC TO N-TYPE 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D02000031.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D02000031.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0D0200 Series

Part	Frequency - Max [Max]	2nd Connector	Features	1st Contact Gender	Overall Impedance	Style	Color	Cable Type	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	Length [x]	Length [x]	1st Connector Mounting Type	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-0D0200003.25M	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female	9.843 "	250 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0200003060i	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)	5 ft	1.5 m	5 '
Amphenol Custom Cable Q-0D02000030.5M	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)		50 cm	19.69 "
Amphenol Custom Cable Q-0D02000031.5M	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)	4.9 ft	1.5 m	59.1 in
Amphenol Custom Cable Q-0D0200003048i	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)	4 ft	1200 mm	48 in
Amphenol Custom Cable Q-0D0200003018i	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female		457.2 mm	Free Hanging (In-Line)				457.2 mm
Amphenol Custom Cable Q-0D0200003072i	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)	6 ft	1.8 m	72 in
Amphenol Custom Cable Q-0D0200003003i	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)		76.2 mm	3 in
Amphenol Custom Cable Q-0D0200003.75M	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)		750 mm	29.53 "
Amphenol Custom Cable Q-0D0200003003M	4 GHz	N-Type Jack	Shielded	Male	50 Ohms	BNC to N-Type	Black	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female			Free Hanging (In-Line)	9.8 '	3 m	118.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.44
		25	$ 69.07
		50	$ 67.70
		100	$ 66.33
		250	$ 64.96

Description

General part information

Q-0D0200 Series

Cable Assembly Coaxial BNC to N-Type RG-174 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
