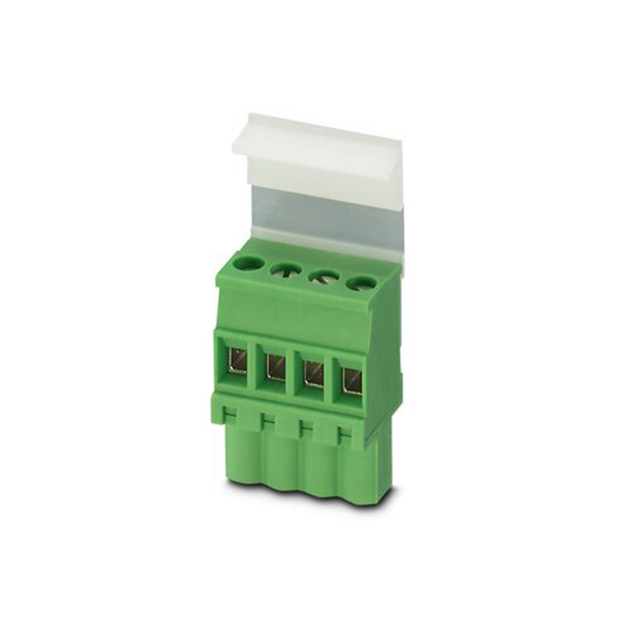

1754047

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 3 POS 5MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1754047

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 3 POS 5MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 3.47
LCSC	Piece	1	$ 3.21
		200	$ 1.28
		500	$ 1.24
		1000	$ 1.22
Sager	N/A	50	$ 4.41
		100	$ 4.25
		200	$ 4.09
		400	$ 3.94

Description

General part information

MVSTBR Series

Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1754047	MVSTBR Series

Color	Black	Green, Black
Contact Mating Finish	Tin	Gold, Tin
Current - IEC	12 A	12 - 16 A
Current - UL	-	16 A
Features	-	Retention Latches (Wire Side), Mating Flange
Housing Material	-	Polyamide (PA), Nylon
Insulation Height	-	1.024 "
Insulation Height	-	26.01 mm
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	2 - 6
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Plug Wire Entry	-	90 °
Positions Per Level	3	2 - 6
Screw Size	M3	M3
Termination Style	Screw	Screw - Rising Cage Clamp, Screw
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Type	Plug	Plug, Female Sockets, Plug
Voltage - IEC	250 V	250 - 630 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG	-	30 AWG
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛	0.2 mm˛
Wire Gauge or Range - mm²	-	0.2 mm²
Wire Gauge or Range - mm²	-	2.5 mm²
Wire Strip Length	7 mm	7 mm

MVSTBR Series

Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw

Part	Mounting Type	Pitch [x]	Pitch [x]	Contact Mating Finish	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Voltage - UL	Current - IEC	Plug Wire Entry	Positions Per Level	Voltage - IEC	Color	Features	Termination Style	Housing Material	Wire Strip Length	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Insulation Height	Insulation Height	Screw Size	Material Flammability Rating	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Current - UL
Phoenix Contact 1786640	Free Hanging (In-Line)	0.2 in	5.08 mm	Gold	Plug, Female Sockets	30 AWG	12 AWG	2	0.2 mm²	2.5 mm²	1	300 V	12 A	90 °	2	250 V	Green	Retention Latches (Wire Side)	Screw - Rising Cage Clamp
Phoenix Contact 1792029	Free Hanging (In-Line)	0.197 in	5 mm	Tin	Plug, Female Sockets	30 AWG	12 AWG		0.2 mm²	2.5 mm²	1	300 V	12 A	90 °	3	630 V	Green	Retention Latches (Wire Side)	Screw - Rising Cage Clamp	Polyamide (PA), Nylon	7 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	1.024 "	26.01 mm	M3	UL94 V-0
Phoenix Contact 1805754	Free Hanging (In-Line)	0.2 in	5.08 mm	Gold	Plug, Female Sockets	30 AWG	12 AWG				1		12 A	90 °	3	250 V	Black	Retention Latches (Wire Side)	Screw - Rising Cage Clamp		7 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	1.024 "	26.01 mm	M3		0.2 mm˛	2.5 mm˛
Phoenix Contact 1912663	Free Hanging (In-Line)	0.2 in	5.08 mm	Tin	Plug, Female Sockets	30 AWG	12 AWG	6	0.2 mm²	2.5 mm²	1	300 V	16 A	90 °	6	630 V	Green	Mating Flange, Retention Latches (Wire Side)	Screw - Rising Cage Clamp	Polyamide (PA), Nylon	7 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	1.024 "	26.01 mm	M3	UL94 V-0			16 A
Phoenix Contact 1754047	Free Hanging (In-Line)	0.197 in	5 mm	Tin	Plug						1		12 A		3	250 V	Black		Screw		7 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm			M3		0.2 mm˛	2.5 mm˛
