9740 060U500

Active

Belden Inc.

CABLE 2COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9740 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Number of Conductors	Ratings	Conductor Insulation	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Usage	Length [x]	Length [x]	Jacket Color	Voltage	Length	Length
Belden Inc. 9740 060U500	18 AWG	5.33 mm	0.21 in	-20 C	80 C	Copper Tinned	2	UL Style 2464	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16	30 AWG	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	500 '	152.4 m	Chrome
Belden Inc. 9740 0605000	18 AWG	5.33 mm	0.21 in	-20 C	80 C	Copper Tinned	2	UL Style 2464	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16	30 AWG	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation			Chrome	300 V
Belden Inc. 9740 060500	18 AWG	5.33 mm	0.21 in	-20 C	80 C	Copper Tinned	2		Poly-Vinyl Chloride (PVC)	Multi-Conductor	16	30 AWG	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	500 '	152.4 m	Chrome
Belden Inc. 9740 0601000	18 AWG	5.33 mm	0.21 in	-20 C	80 C	Copper Tinned	2	UL Style 2464	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16	30 AWG	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation			Chrome	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

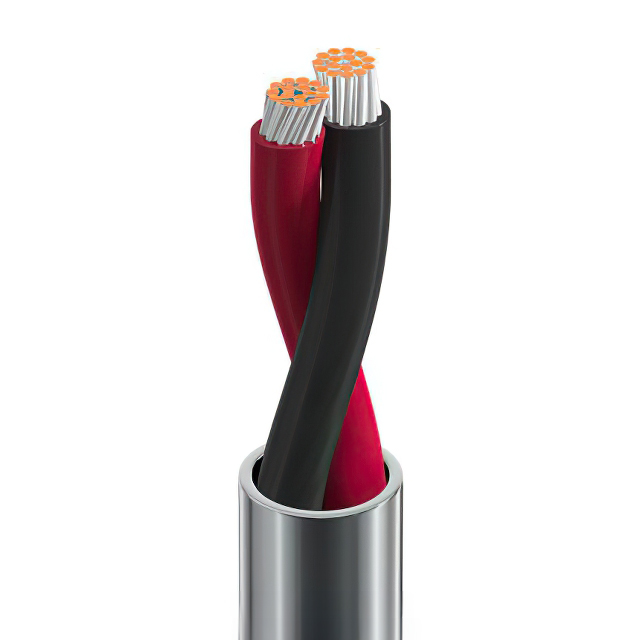

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 18 AWG 500.0' (152.4m)
