LMK04828SNKDREP
ActiveULTRA LOW-NOISE JESD204B COMPLIANT CLOCK JITTER CLEANER WITH TEMPERATURE RANGE -55 TO 105C
Deep-Dive with AI
Search across all available documentation for this part.
LMK04828SNKDREP
ActiveULTRA LOW-NOISE JESD204B COMPLIANT CLOCK JITTER CLEANER WITH TEMPERATURE RANGE -55 TO 105C
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LMK04828SNKDREP | LMK04828-EP Series |
|---|---|---|
| Mounting Type | - | Surface Mount |
| null | - | |

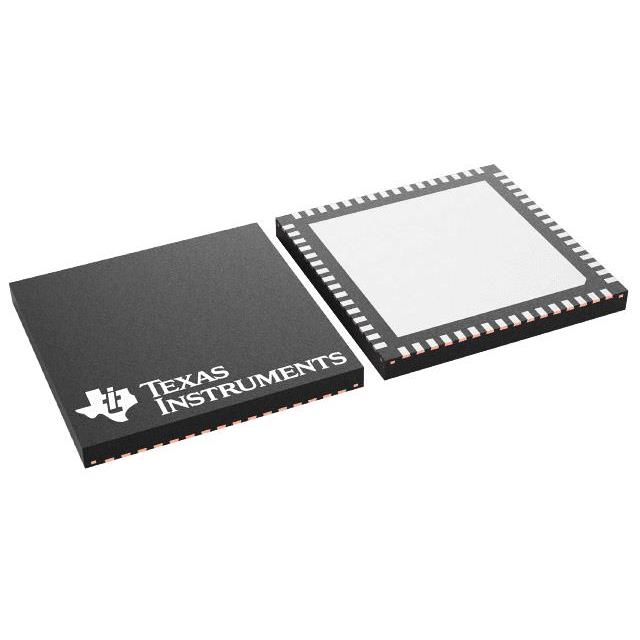

| Package / Case | - | 64-WFQFN Exposed Pad |
| Supplier Device Package | - | 64-WQFN (9x9) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 28.65 | |
| Texas Instruments | LARGE T&R | 1 | $ 35.01 | |
| 100 | $ 31.12 | |||
| 250 | $ 25.58 | |||
| 1000 | $ 22.88 | |||
LMK04828-EP Series
Ultra low-noise JESD204B compliant clock jitter cleaner with temperature range -55 to 105c
| Part | Package / Case | Mounting Type | Supplier Device Package |
|---|---|---|---|
Texas Instruments LMK04828SNKDREP | |||
Texas Instruments LMK04828SNKDTEP | 64-WFQFN Exposed Pad | Surface Mount | 64-WQFN (9x9) |
Description
General part information
LMK04828-EP Series
The LMK04828-EP device is the industry’s highest performance clock conditioner with JESD204B support.
The 14 clock outputs from PLL2 can be configured to drive seven JESD204B converters or other logic devices using device and SYSREF clocks. SYSREF can be provided using both DC and AC coupling. Not limited to JESD204B applications, each of the 14 outputs can be individually configured as high-performance outputs for traditional clocking systems.
The high performance combined with features like the ability to trade off between power or performance, dual VCOs, dynamic digital delay, holdover, and glitchless analog delay make the LMK04828-EP ideal for providing flexible high-performance clocking trees.
