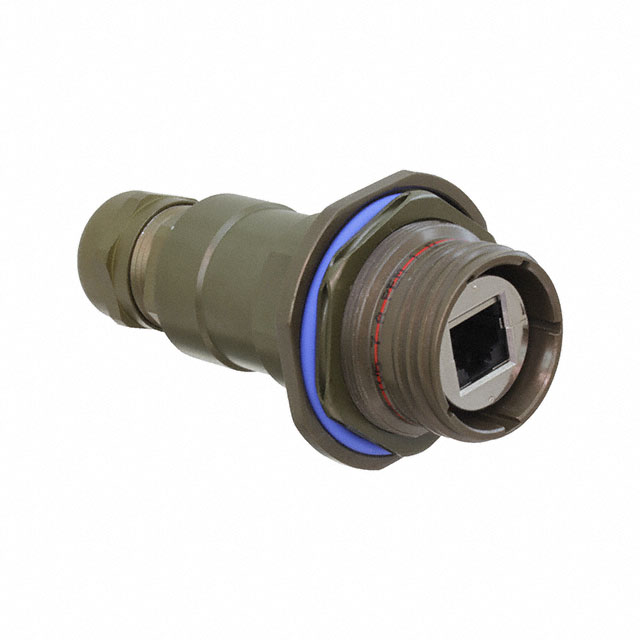

RJFTV67APEM1G
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJFTV67APEM1G
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJFTV67APEM1G |
|---|---|
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Front Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat6 |
| Shell Material, Finish | Olive Drab Cadmium Plated, Aluminum |
| Shielding | Shielded |
| Type | Coupler |
RJFTV67 Series
| Part | Ingress Protection | Mounting Feature | Convert To (Adapter End) | Convert From (Adapter End) | Shell Material, Finish | Type | Mounting Type | Ratings | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Features | Orientation | Connector Type | LED Color | Number of Rows | Number of Ports | Termination | Tab Direction | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Nickel Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | |||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Olive Drab Cadmium Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Backshell | ||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Olive Drab Cadmium Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Backshell | ||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Nickel Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Backshell | ||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Olive Drab Cadmium Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Backshell | ||||||||
Amphenol Socapex | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Coupler | 85 °C | -40 °C | |||||||||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Olive Drab Cadmium Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Backshell | ||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Nickel Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Backshell | ||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Front Side Nut | 8p8c (RJ45) Jack | Jack 8p8c (RJ45) | Aluminum Olive Drab Cadmium Plated | Coupler | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | |||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Bulkhead Panel Mount | Cat6 | Shielded | 85 °C | -40 °C | Straight | Jack | Does Not Contain LED | 1 | 1 | Solder | User Selectable | 8p8c (RJ45 Ethernet) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 160.49 | |
| 10 | $ 125.34 | |||
| 25 | $ 114.24 | |||
| 50 | $ 106.76 | |||
| 100 | $ 100.00 | |||
Description
General part information
RJFTV67 Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6 Shielded
