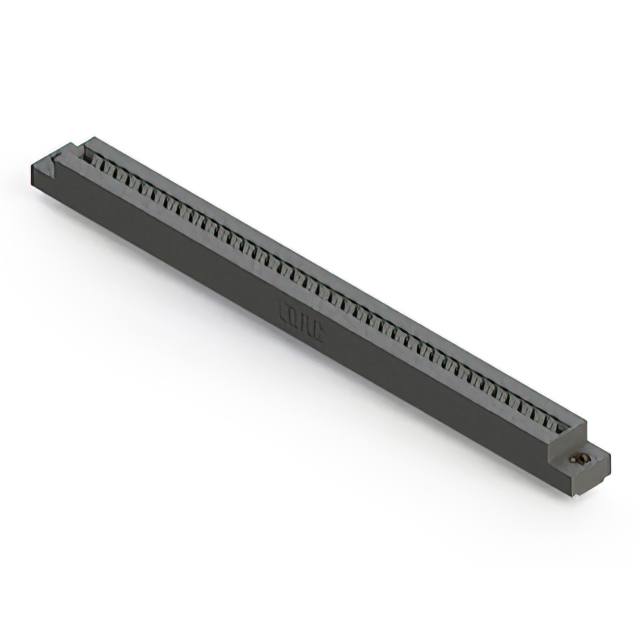

Specification	356-037-420-108

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount, Through Hole
Number of Positions	74, 37 pos
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	1 rows

356-037 Series

Part	Card Type	Contact Type	Read Out	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Flange Feature Diameter	Flange Feature	Termination	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Rows	Card Thickness (Min)	Card Thickness (Max)	Gender	Pitch	Color	Contact Material	Material - Insulation	Termination Rows	Features
EDAC Inc. 356-037-521-102	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Solder	10 Ąin	Panel Mount Through Hole	Gold	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 356-037-500-168	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	10 Ąin	Panel Mount	Gold	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 356-037-421-178	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Solder		Panel Mount Through Hole	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 356-037-400-178	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)		Panel Mount	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 356-037-421-102	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Solder		Panel Mount Through Hole	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 356-037-400-112	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C	0.128 in	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)		Panel Mount	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 356-037-420-108	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Solder		Panel Mount Through Hole	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 356-037-521-108	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Solder	10 Ąin	Panel Mount Through Hole	Gold	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows

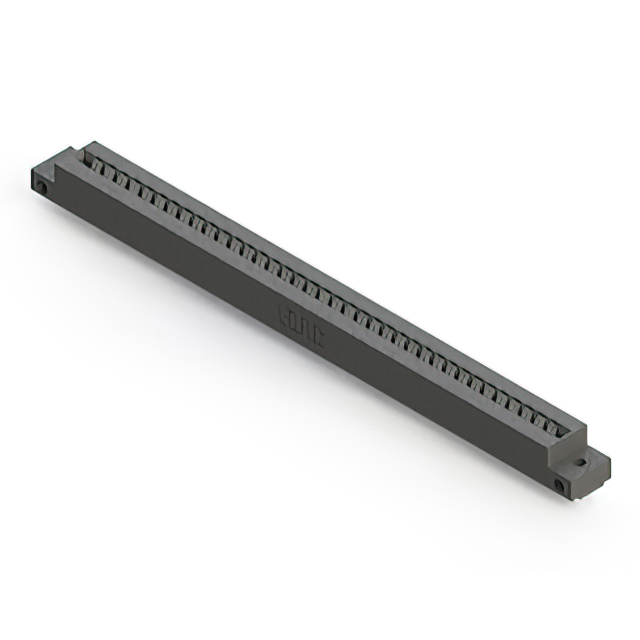

EDAC Inc. 356-037-421-112	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C	0.128 in	Flush Mount Side Opening Unthreaded	Solder		Panel Mount Through Hole	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 356-037-420-168	Dual Edge Non Specified	Cantilever	Dual	37 pos 74	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Solder		Panel Mount Through Hole	Tin	2	0.054 in	0.07 in	Female	0.156 in	Black	Copper Alloy	Polyester Thermoplastic	1 rows	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

356-037-420-108 | Datasheet
