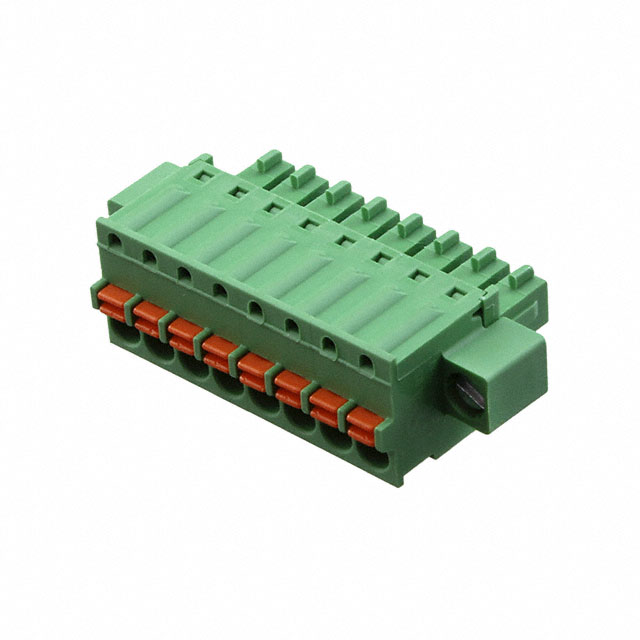

Specification	ASP0840806

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Housing Material	Nylon 6/6, Polyamide, PA66
Ingress Protection	IP20
Insulation Height	0.488 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	8
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Plug Wire Entry Angle	180 °
Positions Per Level	8
Termination Style	Tension Clamp, Screwless - Spring Cage
Type	Female Sockets, Plug
Voltage - UL	150 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	16 AWG
Wire Gauge or Range - mm² (Maximum)	1.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.08 mm²

ASP084 Series

Part	Voltage - UL	Type	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Color	Number of Positions	Current - UL	Plug Wire Entry Angle	Termination Style	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Features	Mounting Type	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Pitch	Positions Per Level	Ingress Protection	Insulation Height	Material Flammability Rating	Housing Material	Contact Material
METZ CONNECT USA Inc. ASP0840906	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	9	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	9	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0840406	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	4	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	4	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0840806	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	8	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	8	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0840306	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	3	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	3	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0841206	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	12	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	12	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0840706	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	7	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	7	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0841006	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	10	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	10	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0840606	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	6	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	6	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0840506	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	5	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	5	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
METZ CONNECT USA Inc. ASP0841106	150 V	Female Sockets Plug	16 AWG	28 AWG	Green	11	8 A	180 °	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	Mating Flange	Free Hanging (In-Line)	1	-40 °C	105 °C	Tin	0.15 in	11	IP20	0.488 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Copper Alloy
