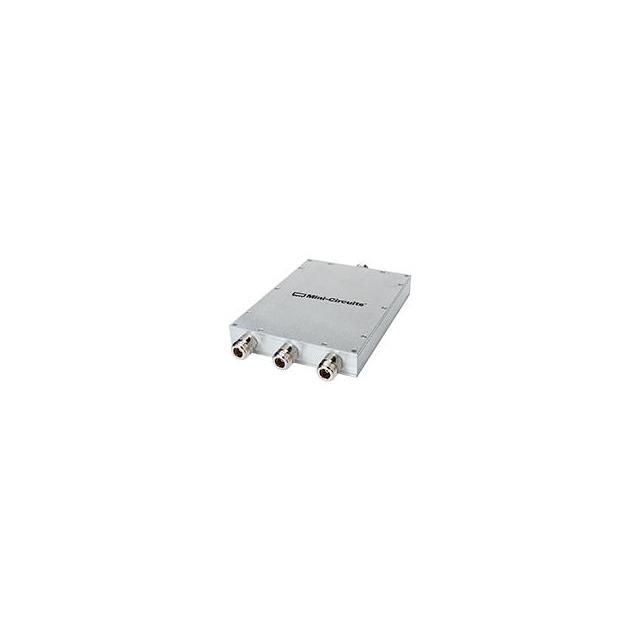

ZB3PD-63-N+

Active

MINI-CIRCUITS

3 WAYS PWRSPLTR, 150 - 6000 MHZ

Search across all available documentation for this part.

Active

MINI-CIRCUITS

3 WAYS PWRSPLTR, 150 - 6000 MHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZB3PD-63-N+	ZB3PD-63 Series

Frequency [Max]	6 GHz	1.05 - 6 GHz
Frequency [Min]	150 MHz	150 - 700 MHz
Insertion Loss	1.5 dB	1.5 dB
Package / Case	N-Type In-Line Module	Module, SMA Connectors, N-Type In-Line Module
Size / Dimension [x]	114.3 mm	114.3 mm
Size / Dimension [x]	4.5 in	4.5 in
Size / Dimension [y]	6 "	6 "
Size / Dimension [y]	152.4 mm	152.4 mm
Size / Dimension [z]	0.88 in	0.88 in
Size / Dimension [z]	22.35 mm	22.35 mm
Specifications [Max]	16 °	16 °
Specifications [Min]	16 dB	16 dB

PWR SPLTR, 150 - 6000 MHZ, 50

Part	Frequency [Min]	Frequency [Max]	Package / Case	Insertion Loss	Specifications [Max]	Specifications [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]
MINI-CIRCUITS ZB3PD-63-S+	700 MHz	1.05 GHz	Module, SMA Connectors	1.5 dB	16 °	16 dB	6 "	114.3 mm	152.4 mm	0.88 in	4.5 in	22.35 mm
MINI-CIRCUITS ZB3PD-63-N+	150 MHz	6 GHz	N-Type In-Line Module	1.5 dB	16 °	16 dB	6 "	114.3 mm	152.4 mm	0.88 in	4.5 in	22.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Power Divider 150 MHz ~ 6 GHz Isolation (Min) 16dB, 16° Imbalance (Max) N-Type In-Line Module
