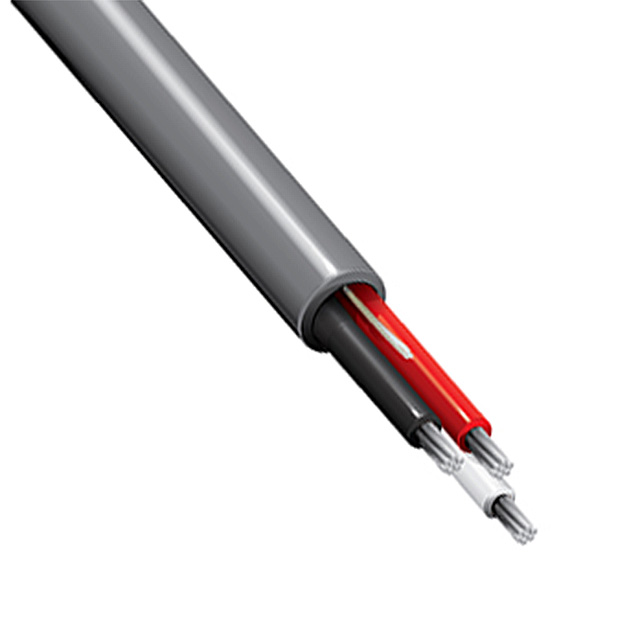

Specification	9491 0602500

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Features	Rip Cord
Jacket (Insulation) Diameter	0.207 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length	2500 ft
Number of Conductors	3
Number of Conductors - Triad	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Ratings	UL, 2464, Style
Usage	Instrumentation
Voltage	300 V
Wire Gauge	22 AWG

9491 Series

Part	Features	Voltage	Jacket (Insulation) Diameter	Conductor Insulation	Length	Usage	Jacket (Insulation) Material	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge	Conductor Strand Gauge	Conductor Strand Count	Ratings	Cable Type	Number of Conductors - Triad	Number of Conductors	Jacket (Insulation) Thickness	Conductor Material	Jacket Color
Belden Inc. 9491 060U1000	Rip Cord	300 V	0.207 in	Poly-Vinyl Chloride (PVC)	1000 ft	Instrumentation	Poly-Vinyl Chloride (PVC)	-30 °C	105 °C	22 AWG	30	7 Strands	2464 Style UL	Conductor Multi	1	3	0.037 in	Copper Tinned	Chrome
Belden Inc. 9491 060U500	Rip Cord	300 V	0.207 in	Poly-Vinyl Chloride (PVC)	500 ft	Instrumentation	Poly-Vinyl Chloride (PVC)	-30 °C	105 °C	22 AWG	30	7 Strands	2464 Style UL	Conductor Multi	1	3	0.037 in	Copper Tinned	Chrome
Belden Inc. 9491 0602500	Rip Cord	300 V	0.207 in	Poly-Vinyl Chloride (PVC)	2500 ft	Instrumentation	Poly-Vinyl Chloride (PVC)	-30 °C	105 °C	22 AWG	30	7 Strands	2464 Style UL	Conductor Multi	1	3	0.037 in	Copper Tinned	Chrome
