737-025-520-106

Active

EDAC Inc.

CONN EDGE SGL FMALE 25POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

737-025-520-106

Active

EDAC Inc.

CONN EDGE SGL FMALE 25POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-025-520-106

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Press-Fit
Termination Rows	1

737-025 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Termination	Contact Type	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish	Read Out	Mounting Type	Contact Material	Material - Insulation	Number of Positions/Bay/Row [custom]	Gender	Pitch [x]	Pitch [x]	Card Type
EDAC Inc. 737-025-540-106	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit Wire Wrap	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-520-106	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-520-101	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-545-106	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit Wire Wrap	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-525-106	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-545-101	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit Wire Wrap	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-540-101	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit Wire Wrap	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-541-101	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit Wire Wrap	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 737-025-541-106	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Press-Fit Wire Wrap	Cantilever	1	-40 °C	105 ░C	1	Gold	Single	Through Hole	Copper Alloy	Polyester Thermoplastic	25	Female	0.156 in	3.96 mm	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.58
Newark	Each	25	$ 8.28
		50	$ 8.09
		100	$ 7.70
		250	$ 7.51
		500	$ 7.24

Description

General part information

737-025 Series

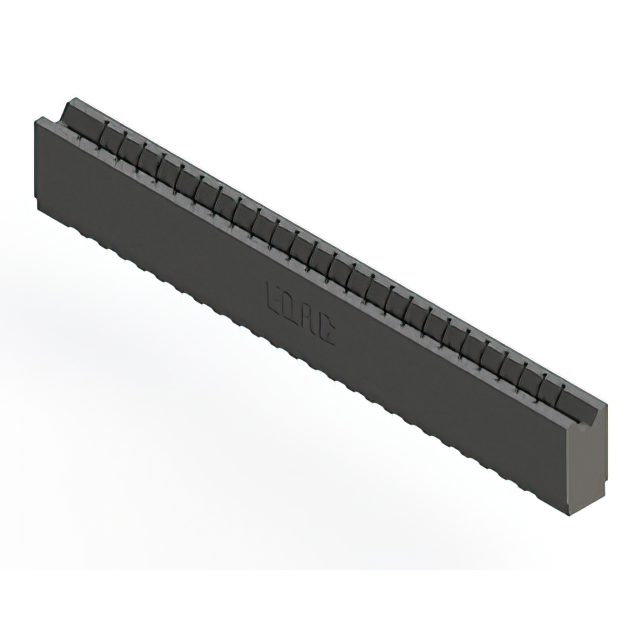

25 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
