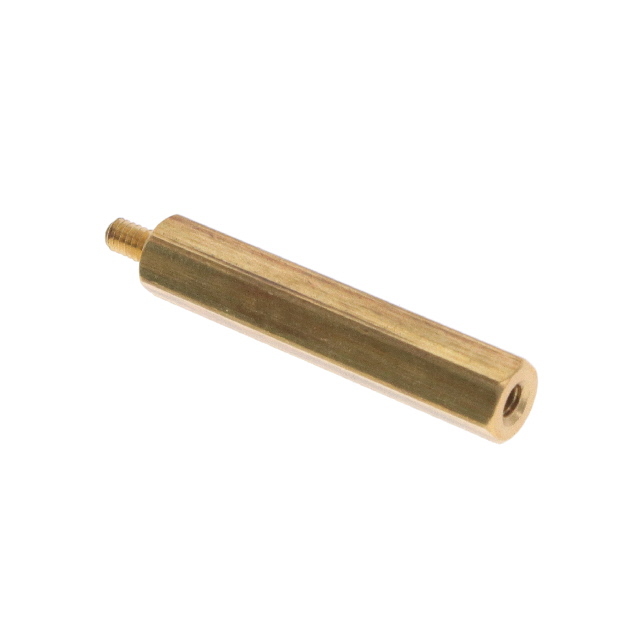

4513-256-B
ActiveRAF Electronic Hardware
3/16 HEX X 1.00 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4513-256-B
ActiveRAF Electronic Hardware
3/16 HEX X 1.00 LENGTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4513-256-B |
|---|---|
| Between Board Height | 1 in |
| Between Board Height | 25.4 mm |
| Diameter - Outside [diameter] | 4.76 mm |
| Diameter - Outside [diameter] | 0.188 " |
| Gender | Female |
| Length - Overall | 25.4 mm |
| Length - Overall | 1 " |
| Material | Brass |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.21 | |
| 5 | $ 1.01 | |||
| 10 | $ 0.91 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.71 | |||
Description
General part information
4513-256 Series
Hex Standoff Threaded #2-56 Brass 1.000" (25.40mm) 1"
