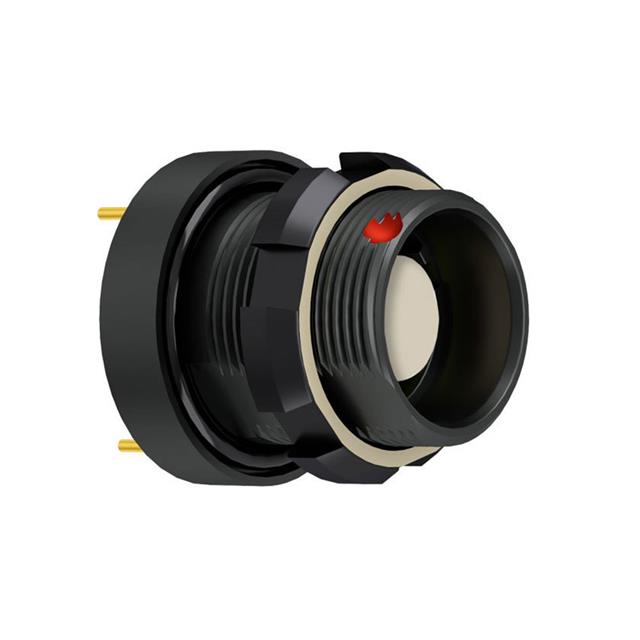

GC0WAM-P12WMM0-000L

Active

ODU

ODU AMC HD RECEPT, STY C, SZ 0,

Search across all available documentation for this part.

Active

ODU

ODU AMC HD RECEPT, STY C, SZ 0,

Technical Specifications

Parameters and characteristics for this part

Specification	GC0WAM-P12WMM0-000L

Applications	Medical, Industrial, Military
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A, 1 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	A
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded

Part	Primary Material	Contact Material	Orientation	Insert Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Current Rating (Amps)	Material Flammability Rating	Shell Material	Shielding	Contact Finish - Mating	Connector Type	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Mounting Feature	Color	Number of Positions
ODU GC0WAM-P12WMM0-000L	Metal	Copper Alloy	A	Polyetheretherketone (PEEK)	0	-51 °C	125 °C	Ruthenium over Electroless Nickel	1 A 5 A	UL94 V-0	Brass	Shielded	Gold	Receptacle Female Sockets	IP68 - Dust Tight Waterproof	1.27 µm	50 µin	Industrial Medical Military	Bulkhead - Front Side Nut	Black Silver	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (10 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
