Q-3501D000R002M
ActiveAmphenol Custom Cable

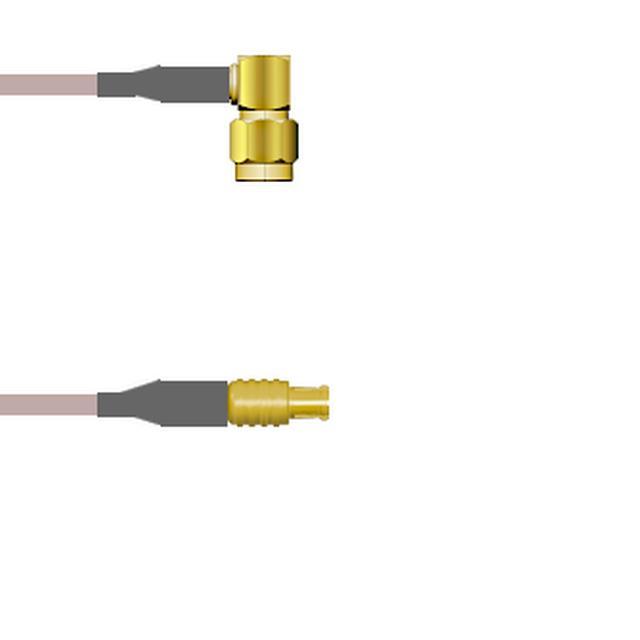

CBL ASSY SMA-MCX PLUG-PLUG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3501D000R002M |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 DS |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 50 Ohms |
| Style | SMA to MCX |
Q-3501D0 Series
| Part | 1st Connector | Style | 1st Connector Mounting Type | 2nd Connector Mounting Type | Color | Features | Overall Impedance | 2nd Connector | Cable Type | Cable Impedance | Connector Impedance | Length | Length | Length | 1st Contact Gender | 2nd Contact Gender | Frequency - Max [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 6.6 ft | 78.7 in | 2 m | Male | Male | 3 GHz | ||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 6 ft | 72 in | 1.8 m | Male | Male | 3 GHz | ||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 7 ft | 84 in | 2.1 m | Male | Male | 3 GHz | ||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | Male | Male | 3 GHz | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 19.69 " | 50 cm | Male | Male | 3 GHz | |||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 24 " | 609.6 mm | Male | Male | 3 GHz | |||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 4 ft | 48 in | 1200 mm | Male | Male | 3 GHz | ||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 29.53 " | 750 mm | Male | Male | 3 GHz | |||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 9 ft | 108 in | 2.7 m | Male | Male | 3 GHz | ||
Amphenol Custom Cable | Right Angle SMA Plug | SMA to MCX | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | Shielded | 50 Ohms | MCX Plug | RG-316 DS | 50 Ohms | 50 Ohms | 5 ft | 5 ' | 1.5 m | Male | Male | 3 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 257.08 | |
| 25 | $ 239.22 | |||
| 50 | $ 221.36 | |||
| 100 | $ 206.05 | |||
| 250 | $ 193.29 | |||
Description
General part information
Q-3501D0 Series
Cable Assembly Coaxial SMA to MCX RG-316 DS 78.7" (2.0m) 6.6'
