10125076-728001TLF

Active

Amphenol ICC (FCI)

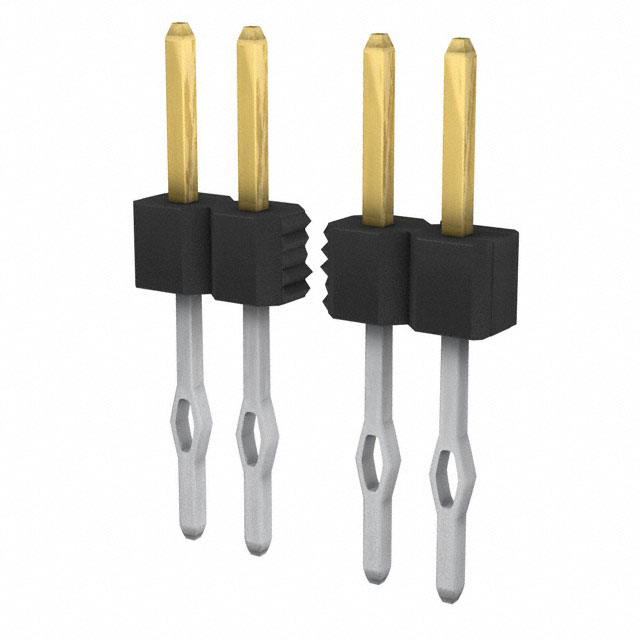

CONN HEADER VERT 28POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER VERT 28POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10125076-728001TLF

Connector Type	Breakaway, Header
Contact Length - Mating	5.1 mm
Contact Length - Mating	0.201 in
Contact Length - Post	0.311 in
Contact Length - Post	7.9 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.608 "
Overall Contact Length	15.44 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder, Press-Fit

Part	Insulation Height	Insulation Height	Contact Type	Mounting Type	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Termination	Fastening Type	Number of Rows	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Shape	Number of Positions Loaded	Material Flammability Rating
Amphenol ICC (FCI) 10125076-728001TLF	0.1 in	2.54 mm	Male Pin	Through Hole	Breakaway Header	0.608 "	15.44 mm	0.311 in	7.9 mm	28	5.1 mm	0.201 in	Copper Alloy	Unshrouded	Press-Fit Solder	Latch Lock	1	Black	0.1 in	2.54 mm	Thermoplastic	Square	All	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1200	$ 2.25

General part information

Connector Header Through Hole 28 position 0.100" (2.54mm)
