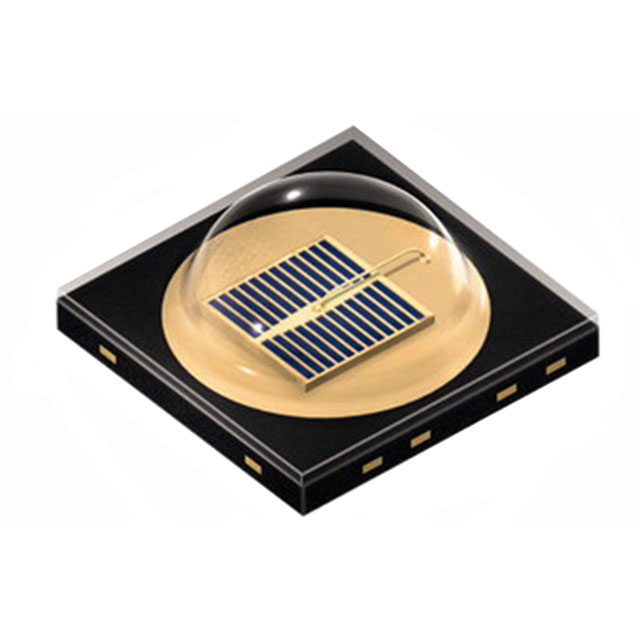

SFH 4716S

Obsolete

ams-OSRAM USA INC.

EMITTER IR 860NM 1A SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EMITTER IR 860NM 1A SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

OSLON BLACK

Part	Package / Case	Type	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Current - DC Forward (If) (Max)
ams-OSRAM USA INC. SFH 4716AS-BBCA	3-SMD, No Lead	Infrared (IR)	1.5 A	130 °	Surface Mount	3.2 V	-40 °C	125 °C	Top View	200 mW/sr	860 nm
ams-OSRAM USA INC. SFH 4716S	3-SMD, No Lead	Infrared (IR)		150 °	Surface Mount	2.9 V	-40 °C	125 °C	Top View		860 nm	1 A
ams-OSRAM USA INC. SFH 4716AS	3-SMD, No Lead	Infrared (IR)	1.5 A	150 °	Surface Mount	3.2 V	-40 °C	125 °C	Top View	300 mW/sr	860 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Infrared (IR) Emitter 860nm 2.9V 1A 225mW/sr @ 1A 150° 3-SMD, No Lead
