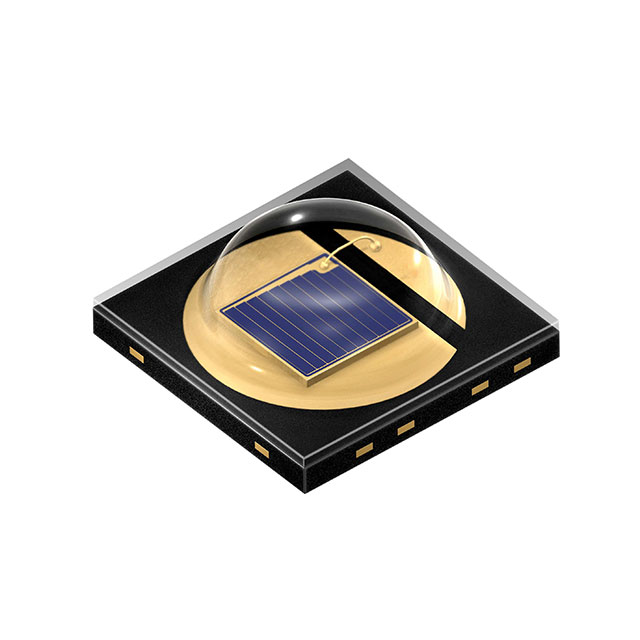

SFH 4716AS-BBCA

Active

ams-OSRAM USA INC.

OSLON BLACK

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

OSLON BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFH 4716AS-BBCA	SFH4716 Series

Current - DC Forward (If) (Max)	-	1 A
Current - DC Forward (If) (Max) [Max]	1.5 A	1.5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	3-SMD, No Lead	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	200 mW/sr	200 - 300 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	130 °	130 - 150 °
Voltage - Forward (Vf) (Typ)	3.2 V	2.9 - 3.2 V
Wavelength	860 nm	860 nm

OSLON BLACK

Part	Package / Case	Type	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Current - DC Forward (If) (Max)
ams-OSRAM USA INC. SFH 4716AS-BBCA	3-SMD, No Lead	Infrared (IR)	1.5 A	130 °	Surface Mount	3.2 V	-40 °C	125 °C	Top View	200 mW/sr	860 nm
ams-OSRAM USA INC. SFH 4716S	3-SMD, No Lead	Infrared (IR)		150 °	Surface Mount	2.9 V	-40 °C	125 °C	Top View		860 nm	1 A
ams-OSRAM USA INC. SFH 4716AS	3-SMD, No Lead	Infrared (IR)	1.5 A	150 °	Surface Mount	3.2 V	-40 °C	125 °C	Top View	300 mW/sr	860 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 3.2V 1.5A 200mW/sr @ 1A 130° 3-SMD, No Lead
