824-AG11D-ESL-LF
ObsoleteTE Connectivity AMP Connectors

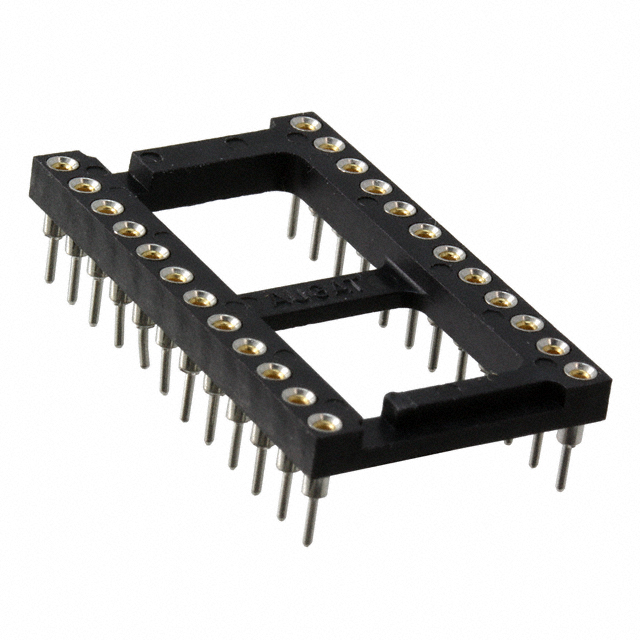

CONN IC DIP SOCKET 24POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
824-AG11D-ESL-LF
ObsoleteTE Connectivity AMP Connectors
CONN IC DIP SOCKET 24POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 824-AG11D-ESL-LF | 824 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Tin-Lead, Gold, Tin |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Finish Thickness - Post | - | 2.03 µm |
| Contact Finish Thickness - Post | - | 80 µin |
| Contact Material - Mating | Beryllium Copper | Copper Alloy, Beryllium Copper |
| Contact Material - Post | Copper | Copper |
| Contact Material - Post | - | Copper Alloy |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | - | 3 A |
| Features | Open Frame | Open Frame |
| Height (Max) | - | 49.53 mm |
| Height (Max) | - | 1.95 in |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Length | - | 44.45 mm |
| Length | - | 1.75 in |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0, UL94 V-2 |
| Mounting Type | Through Hole | Through Hole, Direct Mount |
| Number of Levels | - | 1 |
| Number of Positions | - | 2 |
| Number of Positions or Pins (Grid) | 24 | 24 |
| Operating Temperature | - | 125 °C |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Stripping Length | - | 17 mm |
| Terminal - Width | - | 29.2 mm |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Termination Style | - | Tubular Screw |
| Type | DIP | DIP, NEMA Open Construction |
| Type | 0.6 in | 0.3 - 0.6 in |
| Type | 15.24 mm | 7.62 - 15.24 mm |
| Wire Gauge or Range - AWG | - | 12 AWG |
| Wire Gauge or Range - AWG | - | 1 aught AWG |
824 Series
CONN IC DIP SOCKET 24POS GOLD
| Part | Type | Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Housing Material | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) | Pitch - Mating | Pitch - Mating | Features | Contact Material - Mating | Mounting Type | Contact Finish - Mating | Contact Finish - Post | Contact Material - Post [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material - Insulation | Number of Positions | Length | Length | Number of Levels | Height (Max) [Max] | Height (Max) [Max] | Stripping Length | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Termination Style | Operating Temperature | Terminal - Width [y] | Contact Finish Thickness - Mating | Contact Material - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 824-AG10D | DIP | 0.6 in | 15.24 mm | 105 ░C | -55 °C | Solder | Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 3 A | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Copper Alloy | Through Hole | Gold | ||||||||||||||||||||
TE Connectivity AMP Connectors 824-AG66D | DIP | 0.4 in | 10.16 mm | 105 ░C | -55 °C | Solder | Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Copper Alloy | Through Hole | Gold | Tin-Lead | Copper Alloy | 2.03 µm | 80 µin | |||||||||||||||||
TE Connectivity AMP Connectors 824-AG11D-ES | DIP | 0.6 in | 15.24 mm | 105 ░C | -55 °C | Solder | Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 3 A | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Copper Alloy | Through Hole | Gold | Tin-Lead | Copper Alloy | ||||||||||||||||||
TE Connectivity AMP Connectors 824-BU | NEMA Open Construction | UL94 V-2 | Direct Mount | Nylon, Polyamide (PA) | 2 | 44.45 mm | 1.75 in | 1 | 49.53 mm | 1.95 in | 17 mm | 12 AWG | 1 aught AWG | Tubular Screw | 125 °C | 29.2 mm | |||||||||||||||||||||||||
TE Connectivity AMP Connectors 824-AG31D-ESL-LF | DIP | 0.3 " | 7.62 mm | 105 ░C | -55 °C | Solder | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Beryllium Copper | Through Hole | Gold | Gold | Flash | Copper | Flash | |||||||||||||||||
TE Connectivity AMP Connectors 824-AG30D | DIP | 0.3 " | 7.62 mm | 105 ░C | -55 °C | Solder | Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 3 A | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Copper Alloy | Through Hole | Gold | ||||||||||||||||||||
TE Connectivity AMP Connectors 824-AG32D-LF | DIP | 0.3 " | 7.62 mm | 105 ░C | -55 °C | Solder | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Beryllium Copper | Through Hole | Tin | Copper | ||||||||||||||||||||
TE Connectivity AMP Connectors 824-AG11D-ESL-LF | DIP | 0.6 in | 15.24 mm | 105 ░C | -55 °C | Solder | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 2.54 mm | 0.1 in | 24 | 0.1 in | 2.54 mm | Open Frame | Beryllium Copper | Through Hole | Gold | Gold | Flash | Copper | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
824 Series
24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
