24IMX70-15-0TG

Active

Bel Power Solutions

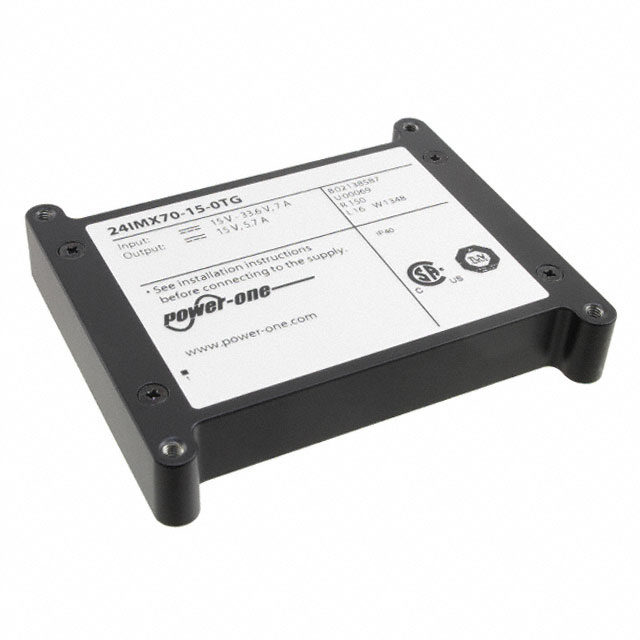

DC DC CONVERTER 15V 90W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 15V 90W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 227.72

General part information

Isolated Module, Conformal Coated DC DC Converter 1 Output 15V 6A 15V - 33.6V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	24IMX70-15-0TG	24IMX70 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	-	Active High, Enable
Current - Output (Max)	-	5.7 - 7 A
Current - Output (Max) [Max]	6 A	6 A
Efficiency	90 %	90 - 93 %
Features	OTP, SCP, OCP	OTP, SCP, OCP, UVLO, Remote On/Off, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	203 °F	203 °F
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	19-DIP Module, 17 Leads	19-DIP Module, 17 Leads
Power (Watts)	90 W	84 - 90 W
Size / Dimension [x]	3 "	3 "
Size / Dimension [x]	76.2 mm	76.2 mm
Size / Dimension [y]	2.5 in	2.5 in
Size / Dimension [y]	63.5 mm	63.5 mm
Size / Dimension [z]	0.49 in	0.49 in
Size / Dimension [z]	12.5 mm	12.5 mm
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	33.6 V	33.6 V
Voltage - Input (Min) [Min]	15 V	15 V
Voltage - Isolation	1.5 kV	1.5 - 2.1 kV
Voltage - Output 1	15 V	12 - 15 V

DC DC CONVERTER 15V 90W

Part	Efficiency	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Features	Voltage - Input (Min) [Min]	Control Features	Current - Output (Max)
Bel Power Solutions 24IMX70-15-0TG	90 %	90 W	Through Hole	6 A	0.49 in	12.5 mm	2.5 in	3 "	76.2 mm	63.5 mm	ITE (Commercial)	1.5 kV	33.6 V	15 V	1	Conformal Coated, Isolated Module	-40 °C	203 °F	19-DIP Module, 17 Leads	OCP, OTP, SCP	15 V
Bel Power Solutions 24IMX70-15-0ITG	92 %	86 W	Through Hole		0.49 in	12.5 mm	2.5 in	3 "	76.2 mm	63.5 mm	ITE (Commercial)	2.1 kV	33.6 V	15 V	1	Conformal Coated, Isolated Module	-40 °C	203 °F	19-DIP Module, 17 Leads	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	15 V	Active High, Enable	5.7 A
Bel Power Solutions 24IMX70-12-0TG	90 %	84 W	Through Hole		0.49 in	12.5 mm	2.5 in	3 "	76.2 mm	63.5 mm	ITE (Commercial)	2.1 kV	33.6 V	12 V	1	Conformal Coated, Isolated Module	-40 °C	203 °F	19-DIP Module, 17 Leads	OCP, OTP, SCP	15 V		7 A
Bel Power Solutions 24IMX70-12-0ITZG	93 %	84 W	Through Hole								ITE (Commercial)	2.1 kV	33.6 V	12 V	1	Conformal Coated, Isolated Module	-40 °C	203 °F	19-DIP Module, 17 Leads	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	15 V	Active High, Enable	7 A
