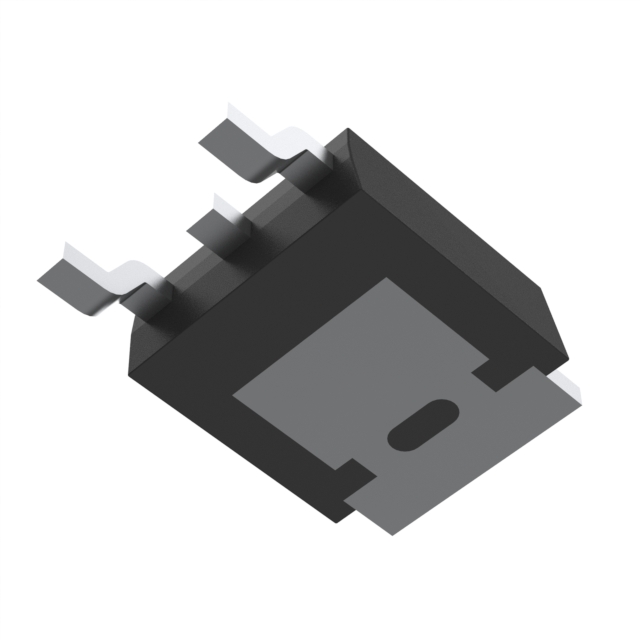

SDT660VD1-13

Active

Diodes Inc

DIODE SCHOT 60V 6A TO252 TYPE TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

SDT660VD1-13

Active

Diodes Inc

DIODE SCHOT 60V 6A TO252 TYPE TH

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDT660VD1-13

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	30 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-252 (DPAK) Type TH
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	500 mV

SDT660VD1 Series

6A TRENCH SCHOTTKY RECTIFIER

Part	Current - Average Rectified (Io)	Package / Case	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If
Diodes Inc SDT660VD1-13	6 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Schottky	60 V	200 mA 500 ns	Surface Mount	150 °C	-55 °C	30 mA	TO-252 (DPAK) Type TH	500 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.18
		5000	$ 0.16
		7500	$ 0.16
		12500	$ 0.15
		17500	$ 0.14
		25000	$ 0.14

Description

General part information

SDT660VD1 Series

The SDT660VD1 provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode.
