787616-1

Obsolete

TE Connectivity AMP Connectors

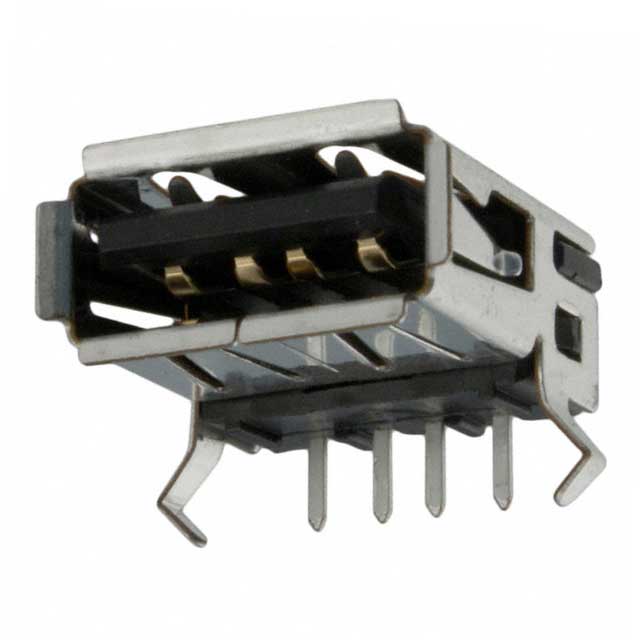

CONN RCPT TYPEA 4POS R/A

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT TYPEA 4POS R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) Receptacle Connector 4 Position Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	787616-1	787616 Series

Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A)
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Current Rating (Amps)	1 A	1 A
Gender	Receptacle	Receptacle
Insulation Color	Black	Black, Natural
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	1500	1500
Mounting Feature	Horizontal	Horizontal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell/Shielding Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

CONN RCPT TYPEA 4POS R/A

Part	Mating Cycles	Voltage - Rated	Contact Finish	Number of Contacts [custom]	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Gender	Material Flammability Rating	Termination	Shielding	Number of Ports	Current Rating (Amps)	Mounting Feature	Shell/Shielding Material
TE Connectivity AMP Connectors 787616-1	1500	30 VAC	Gold, Gold-Palladium	4	Black	85 °C	-55 °C	USB-A (USB TYPE-A)	Through Hole, Right Angle	Receptacle	UL94 V-0	Solder	Shielded	1	1 A	Horizontal	Copper Alloy
TE Connectivity AMP Connectors 787616-5	1500	30 VAC	Gold, Gold-Palladium	4	Natural	85 °C	-55 °C	USB-A (USB TYPE-A)	Through Hole, Right Angle	Receptacle	UL94 V-0	Solder	Shielded	1	1 A	Horizontal	Copper Alloy
TE Connectivity AMP Connectors 787616-6	1500	30 VAC	Gold, Gold-Palladium	4	Black	85 °C	-55 °C	USB-A (USB TYPE-A)	Through Hole, Right Angle	Receptacle	UL94 V-0	Solder	Shielded	1	1 A	Horizontal	Copper Alloy
TE Connectivity AMP Connectors 787616-4	1500	30 VAC	Gold, Gold-Palladium	4	Black	85 °C	-55 °C	USB-A (USB TYPE-A)	Through Hole, Right Angle	Receptacle	UL94 V-0	Solder	Shielded	1	1 A	Horizontal	Copper Alloy
