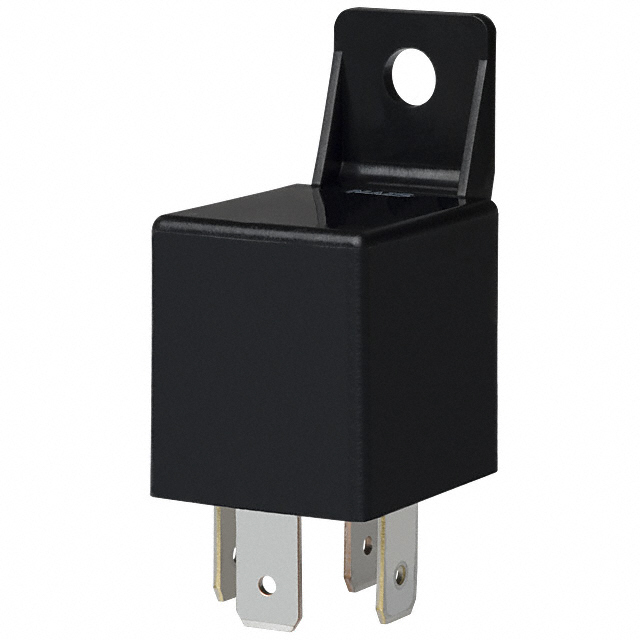

CB1A-M-24V

Active

Panasonic Electric Works

RELAY AUTOMOTIVE SPST 20A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Appl Guidelines Datasheet +1

CB1A-M-24V

Active

Panasonic Electric Works

RELAY AUTOMOTIVE SPST 20A 24V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB1A-M-24V

Coil Current	75 mA
Coil Power	1.8 W
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Alloy, Cadmium Free
Contact Rating (Current)	20 A
Features	Sealed - Fully
Mounting Type	Chassis Mount
Must Operate Voltage	14 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	15 ms
Switching Voltage	28 VDC
Termination Style	Quick Connect - 0.250" (6.3mm)

CB1A Series

Part	Switching Voltage	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Current	Contact Form	Must Operate Voltage	Contact Material	Coil Voltage	Mounting Type	Coil Power	Operate Time	Contact Rating (Current)	Features	Coil Type	Must Release Voltage	Release Time	Termination Style
Panasonic Electric Works CB1AV-D-12V	14 VDC	103 Ohms	85 °C	-40 °C	Plug In Quick Connect - 0.250" (6.3mm)	117 mA	SPST-NO (1 Form A)	7 VDC	Cadmium Free Silver Alloy	12 VDC	Socketable	1.4 W	15 ms	35 A	Diode Sealed - Fully	Non Latching	1.2 VDC
Panasonic Electric Works CB1AF-D-M-24V	28 VDC	320 Ohms	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	75 mA	SPST-NO (1 Form A)	14 VDC	Cadmium Free Silver Alloy	24 VDC	Chassis Mount	1.8 W	15 ms	20 A	Diode Sealed - Flux Protection	Non Latching	2.4 VDC
Panasonic Electric Works CB1A-R-M-24V	28 VDC	287 Ohms	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	84 mA	SPST-NO (1 Form A)	14 VDC	Cadmium Free Silver Alloy	24 VDC	Chassis Mount	2 W	15 ms	20 A	Resistor Sealed - Fully	Non Latching	2.4 VDC	15 ms
Panasonic Electric Works CB1A-D-24V	28 VDC	320 Ohms	85 °C	-40 °C	Plug In Quick Connect - 0.250" (6.3mm)	75 mA	SPST-NO (1 Form A)	14 VDC	Cadmium Free Silver Alloy	24 VDC	Socketable	1.8 W	15 ms	20 A	Diode Sealed - Fully	Non Latching	2.4 VDC
Panasonic Electric Works CB1AV-12V	14 VDC	103 Ohms	85 °C	-40 °C	Plug In Quick Connect - 0.250" (6.3mm)	117 mA	SPST-NO (1 Form A)	7 VDC	Cadmium Free Silver Alloy	12 VDC	Socketable	1.4 W	15 ms	35 A	Sealed - Fully	Non Latching	1.2 VDC	15 ms
Panasonic Electric Works CB1AF-T-M-12V	14 VDC	103 Ohms	125 °C	-40 °C	Quick Connect	117 mA	SPST-NO (1 Form A)	7 VDC	Cadmium Free Silver Alloy	12 VDC	Chassis Mount	1.4 W	15 ms	40 A	Sealed - Flux Protection	Non Latching	1.2 VDC	15 ms	0.25 " 0.375 "
Panasonic Electric Works CB1AF-24V	28 VDC	320 Ohms	85 °C	-40 °C	Plug In Quick Connect - 0.250" (6.3mm)	75 mA	SPST-NO (1 Form A)	14 VDC	Cadmium Free Silver Alloy	24 VDC	Socketable	1.8 W	15 ms	20 A	Sealed - Flux Protection	Non Latching	2.4 VDC	15 ms
Panasonic Electric Works CB1AF-T-12V	14 VDC	103 Ohms	125 °C	-40 °C	Plug In Quick Connect - 0.250" (6.3mm)	117 mA	SPST-NO (1 Form A)	7 VDC	Cadmium Free Silver Alloy	12 VDC	Socketable	1.4 W	15 ms	40 A	Sealed - Flux Protection	Non Latching	1.2 VDC	15 ms
Panasonic Electric Works CB1A-M-24V	28 VDC	320 Ohms	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	75 mA	SPST-NO (1 Form A)	14 VDC	Cadmium Free Silver Alloy	24 VDC	Chassis Mount	1.8 W	15 ms	20 A	Sealed - Fully	Non Latching	2.4 VDC	15 ms
Panasonic Electric Works CB1A-TD-12V	14 VDC	103 Ohms	125 °C	-40 °C	Plug In Quick Connect - 0.250" (6.3mm)	117 mA	SPST-NO (1 Form A)	7 VDC	Cadmium Free Silver Alloy	12 VDC	Socketable	1.4 W	15 ms	40 A	Diode Sealed - Fully	Non Latching	1.2 VDC	15 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.93
		10	$ 3.51
		25	$ 3.35
		50	$ 3.23
		100	$ 3.12
		250	$ 2.98
		500	$ 2.88
		1000	$ 2.78
