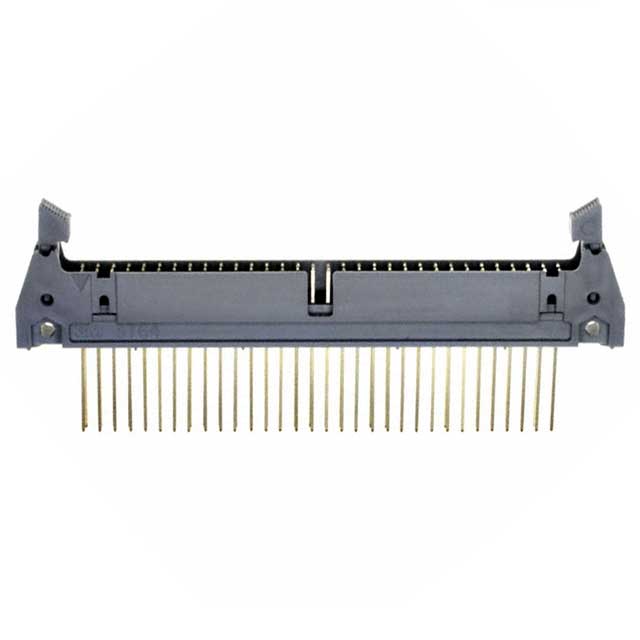

3764-6205

Active

3M (TC)

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3764-6205

Active

3M (TC)

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3764-6205

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.61 in
Contact Length - Post	15.49 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	17.27 mm, 24.59 mm
Insulation Height	0.68 in, 0.968 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	1.15 in
Overall Contact Length	29.21 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap
Voltage Rating	125 VDC

3764 Series

Part	Fastening Type	Material Flammability Rating	Style	Number of Positions	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Current Rating (Amps)	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Material	Mounting Type	Overall Contact Length	Overall Contact Length	Type	Shelf Life	Features	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	For Use With/Related Products	Contact Finish Thickness - Post	Voltage Rating
3M (TC) 3764-5302	Latch Lock/Eject Hooks Long	UL94 V-0	Board to Board Cable	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in	1.75 A	Shrouded - 4 Wall	200 µin	5.08 µm	Copper Alloy	0.1 in	2.54 mm	0.34 in	8.64 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Solder	Tin-Lead	2.54 mm	0.1 in	3.94 mm	0.155 "	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle
3M (TC) 3764-6503UG	Latch Lock/Eject Hooks Short	UL94 V-0	Board to Cable/Wire	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in		Shrouded - 4 Wall	200 µin	5.08 µm	Copper Alloy	0.1 in	2.54 mm	0.68 in	17.27 mm	15 µin	0.38 µm	Black	Square	2	105 ░C	-55 °C	Solder	Tin-Lead	2.54 mm	0.1 in	3.94 mm	0.155 "	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	0.695 in	17.65 mm
3M (TC) 3764-6302-UG	Latch Lock/Eject Hooks Long	UL94 V-0	Board to Cable/Wire	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in		Shrouded - 4 Wall	200 µin	5.08 µm	Copper Alloy	0.1 in	2.54 mm	0.68 in	17.27 mm	15 µin	0.38 µm	Black	Square	2	105 ░C	-55 °C	Solder	Tin-Lead	2.54 mm	0.1 in	2.84 mm	0.112 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	0.652 in	16.56 mm
3M (TC) 3764B-CLEAR-PELLET-22LB																																					Hot Melt	24 Months	Clear	Date of Shipment	120 °F	49 °C	Hot Melt Applicator
3M (TC) 3764-5503	Latch Lock/Eject Hooks Short	UL94 V-0	Board to Board Cable	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in	1.75 A	Shrouded - 4 Wall	200 µin	5.08 µm	Copper Alloy	0.1 in	2.54 mm	0.34 in	8.64 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Solder	Tin-Lead	2.54 mm	0.1 in	3.94 mm	0.155 "	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle
3M (TC) 3764-6205	Latch Lock/Eject Hooks Short	UL94 V-0	Board to Cable/Wire	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in		Shrouded - 4 Wall			Copper Alloy	0.1 in	2.54 mm	0.68 in 0.968 in	17.27 mm 24.59 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Wire Wrap	Gold	2.54 mm	0.1 in	15.49 mm	0.61 in	Glass Filled Polybutylene Terephthalate (PBT) Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	1.15 in	29.21 mm								Flash	125 VDC
3M (TC) 3764-5305	Latch Lock/Eject Hooks Long	UL94 V-0	Board to Board Cable	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in		Shrouded - 4 Wall			Copper Alloy	0.1 in	2.54 mm	0.34 in	8.64 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Wire Wrap	Gold	2.54 mm	0.1 in	15.49 mm	0.61 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle										Flash
3M (TC) 3764-5202	Latch Lock/Eject Hooks Short	UL94 V-0	Board to Board Cable	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in	1.75 A	Shrouded - 4 Wall	200 µin	5.08 µm	Copper Alloy	0.1 in	2.54 mm	0.34 in	8.64 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Solder	Tin-Lead	2.54 mm	0.1 in	2.84 mm	0.112 in	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle
3M (TC) 3764-6305	Latch Lock/Eject Hooks Long	UL94 V-0	Board to Cable/Wire	64	All	Header	Gold	Male Pin	6.1 mm	0.24 in		Shrouded - 4 Wall			Copper Alloy	0.1 in	2.54 mm	0.68 in	17.27 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Wire Wrap	Gold	2.54 mm	0.1 in	15.49 mm	0.61 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	1.15 in	29.21 mm								Flash
3M (TC) 3764-L003UB	Push-Pull	UL94 V-0	Board to Board Cable	64	All	Header Stackable (2)	Gold	Male Pin	6.1 mm	0.24 in		Shrouded - 4 Wall	200 µin	5.08 µm	Copper Alloy	0.1 in	2.54 mm	0.66 in	16.76 mm	30 Áin	0.76 Ám	Black	Square	2	105 ░C	-55 °C	Solder	Tin-Lead	2.54 mm	0.1 in	3.94 mm	0.155 "	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 14.94

Description

General part information

3764 Series

Connector Header Through Hole 64 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
