T356C156K006AT

Active

KEMET

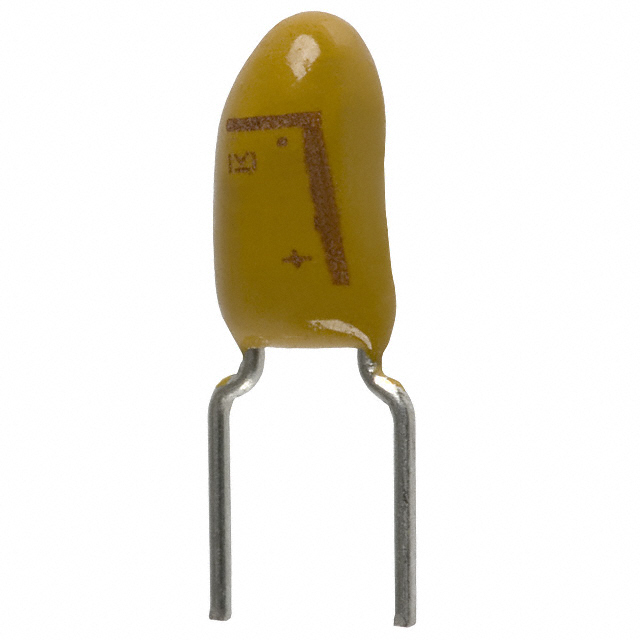

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 10% +TOL, 10% -TOL, 15UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 10% +TOL, 10% -TOL, 15UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	T356C156K006AT

Capacitance	15 µF
ESR (Equivalent Series Resistance)	5 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	9.6 mm
Height - Seated (Max) [Max] [z]	0.378 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	6.3 V

Part	Voltage - Rated	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Capacitance	Type
KEMET T356C475M025AT	25 VDC	20 %	9.6 mm	0.378 "	Through Hole	-55 °C	125 °C	General Purpose	5 mm	0.197 "	Radial	5.08 mm	0.2 in	4 Ohm	4.7 µF	Conformal Coated
KEMET T356C156K006AT	6.3 V	10 %	9.6 mm	0.378 "	Through Hole	-55 °C	125 °C	General Purpose	5 mm	0.197 "	Radial	5.08 mm	0.2 in	5 Ohm	15 µF	Conformal Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.84
Newark	Each	1000	$ 2.01
		2500	$ 1.80

General part information

15 µF Conformal Coated Tantalum Capacitors 6.3 V Radial 5Ohm
