M85049/1811W02

Active

Amphenol Interconnect India

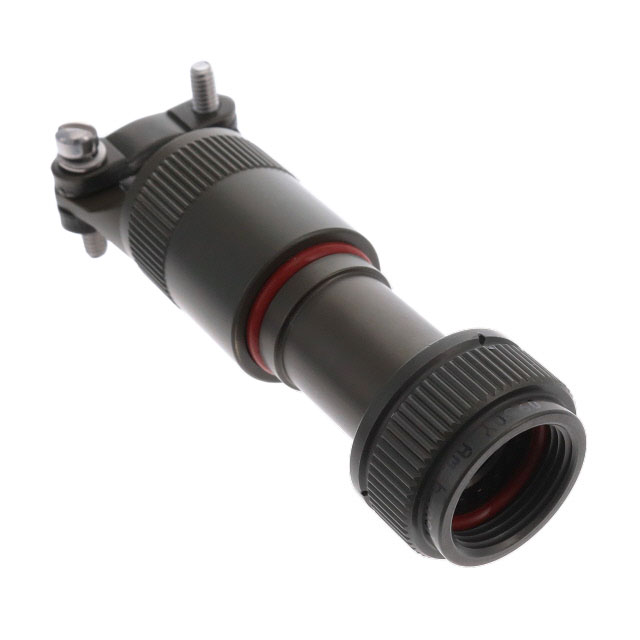

CONN BACKSHLL W/CLMP SZ11 B OLIV

Deep-Dive with AI

Search across all available documentation for this part.

M85049/1811W02

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ11 B OLIV

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1150.33
		1	$ 53.76
		10	$ 49.33
		25	$ 47.43
		50	$ 45.85
		100	$ 43.32

Description

General part information

M85049/18 Series

Olive Drab Connector Backshell, Cable Clamp 11, B

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/1811W02	M85049/18 Series

Cable Exit	180 °	180 °
Cable Opening	-	3.3 - 31.75 mm
Cable Opening	-	0.13 - 1.25 in
Cable Opening	-	3.3 - 28.7 mm
Cable Opening	-	0.13 - 1.13 in
Cable Opening	-	1.52 - 25.4 mm
Cable Opening	-	0.06 - 1 in
Cable Opening	-	19.05 mm
Cable Opening	-	25.4 mm
Cable Opening [Max] [diameter]	0.25 in	0.13 - 1.25 in
Cable Opening [Max] [diameter]	6.35 mm	3.3 - 31.75 mm
Cable Opening [Min] [diameter]	0.125 in	0.06 - 1.13 in
Cable Opening [Min] [diameter]	3.18 mm	1.52 - 28.7 mm
Color	Olive Drab	Black, Olive Drab, Silver
Diameter - Outside [diameter]	21.59 mm	19.05 - 46.99 mm
Diameter - Outside [diameter]	0.85 in	0.75 - 1.85 in
Features	Clamp Screws	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy, Aluminum
Plating	Cadmium	Zinc Cobalt, Cadmium, Electroless Nickel
Shell Size - Insert	B	G, D, J, H, C, 17, E, F, B
Shell Size - Insert	11	11 - 25
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Type	Backshell, Cable Clamp	Backshell, Cable Clamp

M85049/18 Series

CONN BACKSHELL W/CLMP SZ21 G BLK

...

Part	Features	Material	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shielding	Cable Exit	Plating	Color	Type	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India M85049/1821Z06	Clamp Screws	Aluminum Alloy	Environment Resistant	16 mm, 19.05 mm	0.63 in, 0.75 in	39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV
Amphenol Interconnect India M85049/1821Z04B	Clamp Screws	Aluminum Alloy	Environment Resistant			39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV	12.7 mm	0.5 in	9.65 mm	0.38 in
Amphenol Interconnect India M85049/1815Z02B	Clamp Screws	Aluminum Alloy	Environment Resistant	3.3 mm, 6.35 mm	0.13 in, 0.25 in	29.21 mm	1.15 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	15	D	MIL-DTL-38999 Series III, IV
Amphenol Interconnect India M85049/1825Z09B	Clamp Screws	Aluminum Alloy	Environment Resistant			46.99 mm	1.85 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	25	J	MIL-DTL-38999 Series III, IV	28.7 mm	1.13 in	25.4 mm	1 in
Amphenol Interconnect India M85049/1825Z07	Clamp Screws	Aluminum Alloy	Environment Resistant			46.99 mm	1.85 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	25	J	MIL-DTL-38999 Series III, IV	22.35 mm	0.88 in	19.05 mm	0.75 in
Amphenol Interconnect India M85049/1821Z07	Clamp Screws	Aluminum Alloy	Environment Resistant			39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV
Amphenol Interconnect India M85049/1821Z08B	Clamp Screws	Aluminum Alloy	Environment Resistant			39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV					0.88 in	1 in	25.4 mm	22.35 mm
Amphenol Interconnect India M85049/1825Z08	Clamp Screws	Aluminum Alloy	Environment Resistant			46.99 mm	1.85 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	25	J	MIL-DTL-38999 Series III, IV					0.88 in	1 in	25.4 mm	22.35 mm
Amphenol Interconnect India M85049/1823Z07	Clamp Screws	Aluminum Alloy	Environment Resistant			41.91 mm	1.65 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	23	H	MIL-DTL-38999 Series III, IV	22.35 mm	0.88 in	19.05 mm	0.75 in
Amphenol Interconnect India M85049/1813Z02	Clamp Screws	Aluminum Alloy	Environment Resistant	3.3 mm, 6.35 mm	0.13 in, 0.25 in	25.4 mm	1 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	13	C	MIL-DTL-38999 Series III, IV
