CWN-551-60-0060

Active

CW Industries

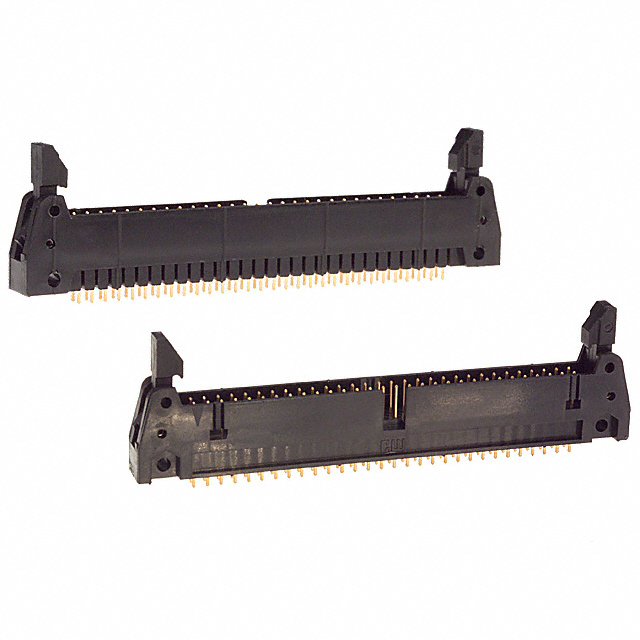

CONN HEADER VERT 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWN-551-60-0060

Active

CW Industries

CONN HEADER VERT 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWN-551-60-0060

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.681 in
Insulation Height	17.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CWN-551 Series

Part	Connector Type	Insulation Color	Insulation Height	Insulation Height	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Material Flammability Rating	Termination	Contact Type	Style	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Fastening Type	Mounting Type	Number of Positions	Contact Finish - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating [x]
CW Industries CWN-551-20-0000	Header	Blue	0.681 in	17.3 mm	Circular	-55 °C	125 °C	Shrouded - 4 Wall	Thermoplastic	0.09 "	2.29 mm	10 çin	0.25 çm	2	UL94 V-0	Solder	Male Pin	Board to Cable/Wire	All	1.27 µm	50 µin	Phosphor Bronze	Latch Lock/Eject Hooks Short	Through Hole	20	Nickel	Gold	0.1 in	2.54 mm	Keying Slot	2.54 mm	0.1 in	6.1 mm	0.24 in
CW Industries CWN-551-60-0060	Header	Black	0.681 in	17.3 mm	Circular	-55 °C	125 °C	Shrouded - 4 Wall	Thermoplastic	0.09 "	2.29 mm	10 çin	0.25 çm	2	UL94 V-0	Solder	Male Pin	Board to Cable/Wire	All	1.27 µm	50 µin	Phosphor Bronze	Latch Lock/Eject Hooks Short	Through Hole	60	Nickel	Gold	0.1 in	2.54 mm	Keying Slot	2.54 mm	0.1 in	6.1 mm	0.24 in
CW Industries CWN-551-50-0021	Header	Blue	0.681 in	17.3 mm	Circular	-55 °C	125 °C	Shrouded - 4 Wall	Thermoplastic	0.09 "	2.29 mm	30 Áin	0.76 Ám	2	UL94 V-0	Solder	Male Pin	Board to Cable/Wire	All	1.27 µm	50 µin	Phosphor Bronze	Latch Lock/Eject Hooks Short	Through Hole	50	Nickel	Gold	0.1 in	2.54 mm	Keying Slot	2.54 mm	0.1 in	6.1 mm	0.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.96
		10	$ 8.46
		100	$ 7.19
		500	$ 6.42
		1000	$ 6.11

Description

General part information

CWN-551 Series

Connector Header Through Hole 60 position 0.100" (2.54mm)
