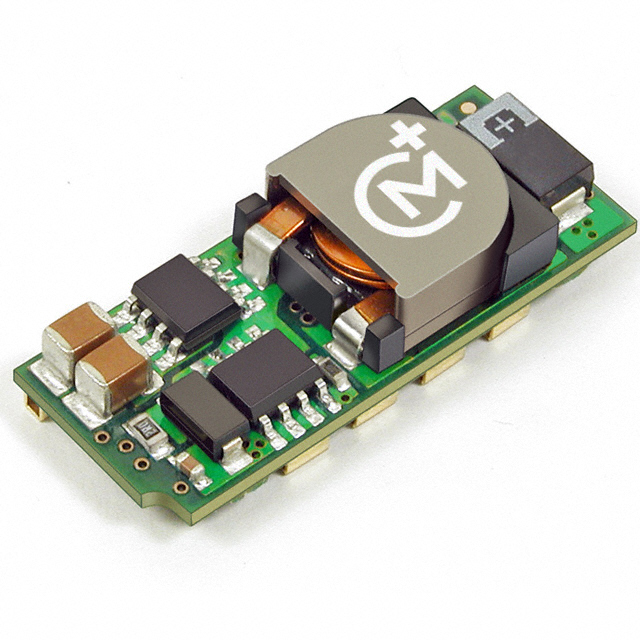

LSM2-T/10-D12-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.75-5V 50W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.75-5V 50W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSM2-T/10-D12-C	LSM2-T Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	10 A	10 - 30 A
Efficiency	95.8 %	94 - 95.8 %
Features	UVLO, Remote On/Off, SCP	UVLO, Remote On/Off, SCP, OCP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-SMD Module	8-SMD Module, 9-SMD Module
Power (Watts)	50 W	50 - 125 W
Size / Dimension [x]	33 mm	33 mm
Size / Dimension [x]	1.3 "	1.3 "
Size / Dimension [y]	0.53 in	0.53 in
Size / Dimension [y]	13.5 mm	13.5 mm
Size / Dimension [z]	0.34 in	0.34 in
Size / Dimension [z]	8.6 mm	8.6 mm
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	8.3 V	8.3 V
Voltage - Output 1 [Max]	5 V	5 V
Voltage - Output 1 [Min]	0.75 V	0.75 - 0.8 V

DC DC CONVERTER 0.75-5V 50W

Part	Number of Outputs	Control Features	Applications	Features	Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Mounting Type	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. LSM2-T/10-D12-C	1	Active High, Enable	ITE (Commercial)	Remote On/Off, SCP, UVLO	Non-Isolated PoL Module	95.8 %	0.34 in	0.53 in	13.5 mm	33 mm	1.3 "	8.6 mm	10 A	Surface Mount	8-SMD Module	50 W	13.2 V	0.75 V	5 V	8.3 V	85 °C	-40 °C
Murata Power Solutions Inc. LSM2-T/30-D12R-C	1	Active Low, Enable	ITE (Commercial)	OCP, Remote On/Off, SCP, UVLO	Non-Isolated PoL Module	94 %	0.34 in	0.53 in	13.5 mm	33 mm	1.3 "	8.6 mm	30 A	Surface Mount	9-SMD Module	125 W	13.2 V	0.8 V	5 V	8.3 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5V 10A 8.3V - 13.2V Input
