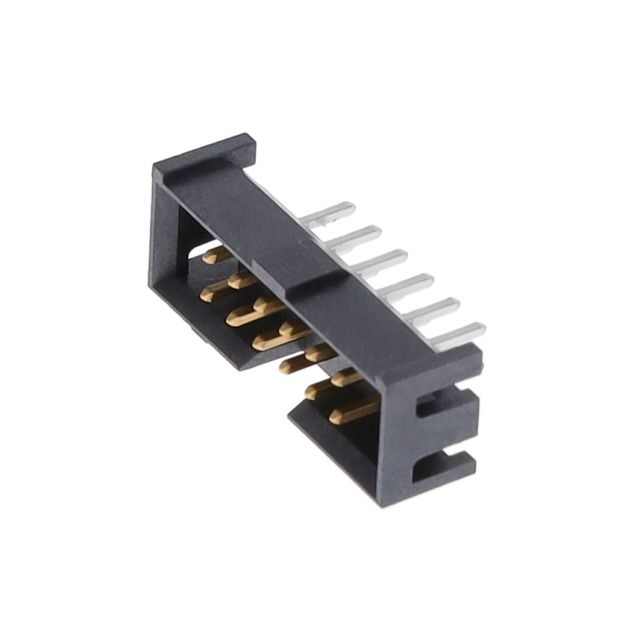

STMM-106-02-L-D

Active

Samtec Inc.

CONN HEADER VERT 12POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.00 mm Shrouded Terminal Strip 2.00 mm Shrouded Terminal Strip, Cable Mate +3

STMM-106-02-L-D

Active

Samtec Inc.

CONN HEADER VERT 12POS 2MM

Deep-Dive with AI

Documents2.00 mm Shrouded Terminal Strip 2.00 mm Shrouded Terminal Strip, Cable Mate +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STMM-106-02-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

STMM-106 Series

Part	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Termination	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Features	Contact Shape	Contact Finish - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Insulation Material	Insulation Color	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. STMM-106-02-L-D	3.05 mm	0.12 in	Through Hole	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	10 çin	0.25 çm	Gold	Keying Slot	Square	Tin	Push-Pull	0.118 in	3 mm	12	4.83 mm	0.19 in	0.079 in	2 mm	0.302 in	7.67 mm	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. STMM-106-02-G-D-SM-P	3.05 mm	0.12 in	Surface Mount	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	20 µin	0.51 µm	Gold	Keying Slot Pick and Place	Square	Gold	Push-Pull			12	4.83 mm	0.19 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2	3 µin	0.076 µm
Samtec Inc. STMM-106-02-G-D-SM-TR	3.05 mm	0.12 in	Surface Mount	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	20 µin	0.51 µm	Gold	Keying Slot	Square	Gold	Push-Pull			12	4.83 mm	0.19 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2	3 µin	0.076 µm
Samtec Inc. STMM-106-01-G-D-RA	2.54 mm	0.1 in	Through Hole Right Angle	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	20 µin	0.51 µm	Gold	Keying Slot	Square	Gold	Push-Pull	0.09 "	2.29 mm	12	6 mm	0.236 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2	3 µin	0.076 µm
Samtec Inc. STMM-106-02-SM-D-SM-K-TR	3.05 mm	0.12 in	Surface Mount	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	30 Áin	0.76 Ám	Gold	Keying Slot Pick and Place	Square	Tin	Push-Pull			12	4.83 mm	0.19 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. STMM-106-01-L-D-P	2.54 mm	0.1 in	Through Hole	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	10 çin	0.25 çm	Gold	Keying Slot Pick and Place	Square	Tin	Push-Pull	0.092 in	2.34 mm	12	4.83 mm	0.19 in	0.079 in	2 mm	0.255 in	6.48 mm	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. STMM-106-02-G-D-SM	3.05 mm	0.12 in	Surface Mount	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	20 µin	0.51 µm	Gold	Keying Slot	Square	Gold	Push-Pull			12	4.83 mm	0.19 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2	3 µin	0.076 µm
Samtec Inc. STMM-106-01-G-D-SM	2.54 mm	0.1 in	Surface Mount	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	20 µin	0.51 µm	Gold	Keying Slot	Square	Gold	Push-Pull			12	4.83 mm	0.19 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2	3 µin	0.076 µm
Samtec Inc. STMM-106-02-S-D-RA	3.05 mm	0.12 in	Through Hole Right Angle	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	30 Áin	0.76 Ám	Gold	Keying Slot	Square	Tin	Push-Pull	0.09 "	2.29 mm	12	6 mm	0.236 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. STMM-106-01-L-D-SM	2.54 mm	0.1 in	Surface Mount	Male Pin	Board to Cable/Wire	0.079 in	2 mm	Shrouded - 4 Wall	-55 °C	125 °C	Header	Phosphor Bronze	Solder	3 A	All	10 çin	0.25 çm	Gold	Keying Slot	Square	Tin	Push-Pull			12	4.83 mm	0.19 in	0.079 in	2 mm			Liquid Crystal Polymer (LCP)	Black	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.40

Description

General part information

STMM-106 Series

Connector Header Through Hole 12 position 0.079" (2.00mm)

Documents

Technical documentation and resources

2.00 mm Shrouded Terminal Strip

2.00 mm Shrouded Terminal Strip, Cable Mate

STMM Datasheet

Datasheet

STMM Series Datasheet 03

Datasheet
