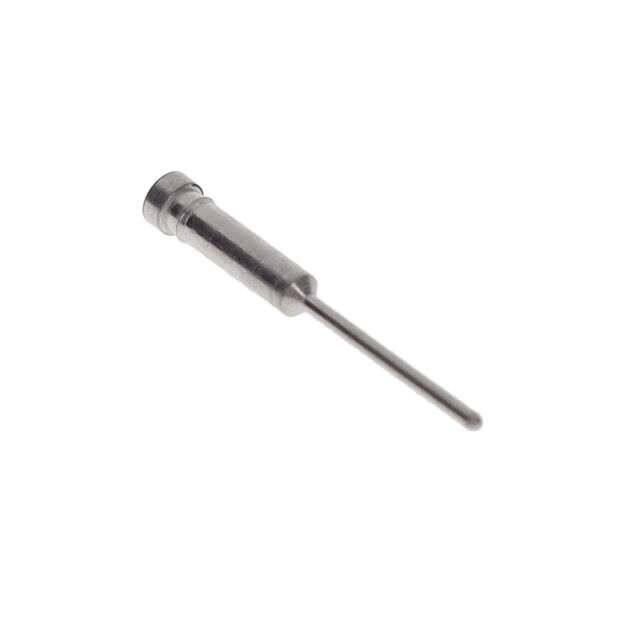

0401-0-15-80-47-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0401-0-15-80-47-14-04-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.93 mm
Flange Diameter [diameter]	0.076 in
Length - Overall [x]	0.6 in
Length - Overall [x]	15.24 mm
Mounting Hole Diameter	1.63 mm
Mounting Hole Diameter [diameter]	0.064 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.23 in
Socket Depth	5.84 mm
Tail Diameter [diameter]	0.025 in
Tail Diameter [diameter]	0.64 mm
Tail Type	Standard Tail
Termination	Press-Fit

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Contact Finish
Mill-Max Manufacturing Corp. 0401-0-15-80-47-14-04-0	0.064 in	1.63 mm	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.64 mm	0.025 in	Standard Tail	-55 °C	125 °C	0.051 in	1.3 mm	0.6 in	15.24 mm	0.23 in	5.84 mm	Beryllium Copper	1.93 mm	0.076 in	0.037 "	0.64 mm	0.94 mm	0.025 "	Press-Fit	Gold
Mill-Max Manufacturing Corp. 0401-0-15-01-47-14-04-0	0.064 in	1.63 mm	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.64 mm	0.025 in	Standard Tail	-55 °C	125 °C	0.051 in	1.3 mm	0.6 in	15.24 mm	0.23 in	5.84 mm	Beryllium Copper	1.93 mm	0.076 in	0.037 "	0.64 mm	0.94 mm	0.025 "	Press-Fit	Gold
Mill-Max Manufacturing Corp. 0401-0-15-80-47-27-04-0	0.064 in	1.63 mm	30 Áin	0.76 Ám	0.025 in	0.64 mm	0.64 mm	0.025 in	Standard Tail	-55 °C	125 °C	0.051 in	1.3 mm	0.6 in	15.24 mm	0.23 in	5.84 mm	Beryllium Copper	1.93 mm	0.076 in	0.037 "	0.64 mm	0.94 mm	0.025 "	Press-Fit	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit
