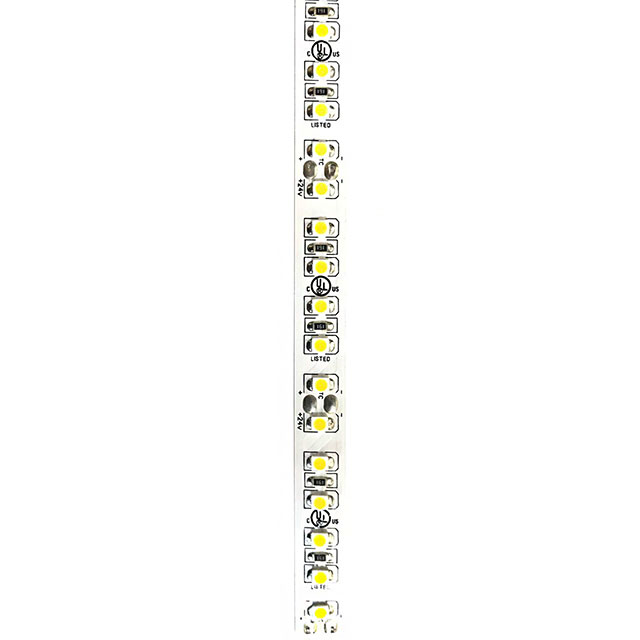

AB-FA02430-19712-8A1

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA WH LNR STRP 3000K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA WH LNR STRP 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FA02430-19712-8A1

Color	White, Warm
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Test	330 mA
Features	IP20
Height [z]	1.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	96 lm/W
Luminous Flux @ Current/Temperature	760 lm
Size / Dimension [x]	5000 mm
Size / Dimension [y]	10 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

LED MOD AB-FA WH LNR STRP 3000K

Part	Voltage - Forward (Vf) (Typ)	Type	Features	Luminous Flux @ Current/Temperature	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Lumens/Watt @ Current - Test	Lens Type	Current - Test	CRI (Color Rendering Index)	Color	Configuration
American Bright Optoelectronics Corporation AB-FA02430-19712-8A1	24 V	LED Module	IP20	760 lm	120 °	5000 mm	10 mm	1.6 mm	96 lm/W	Flat	330 mA	80	Warm, White	Flexible, Linear Light Strip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FA White, Warm Linear Light Strip, Flexible
