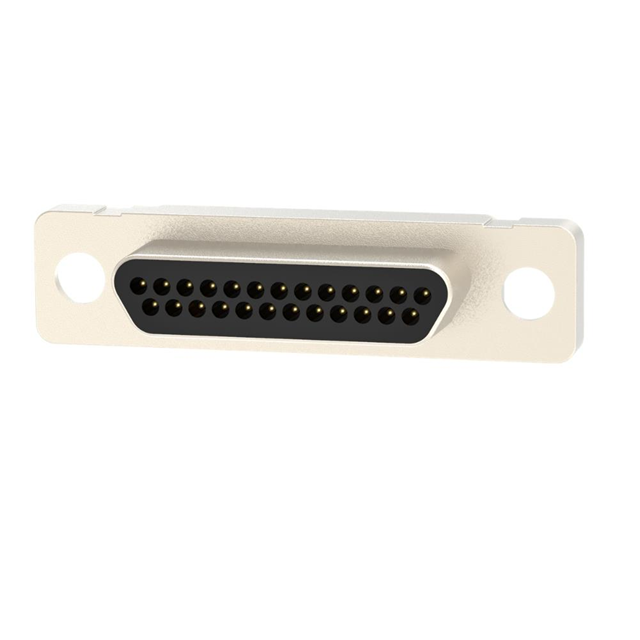

580-M25-113L002

Active

MH Connectors

CONN MICRO-D PLG 25P PNL MT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

580-M25-113L002

Active

MH Connectors

CONN MICRO-D PLG 25P PNL MT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	580-M25-113L002

Color	Black
Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc Alloy
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder
Voltage Rating	60 VDC

580-M25 Series

Part	Contact Finish	Color	Contact Material	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Current Rating (Amps)	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Wire Gauge	Connector Type	Features	Material Flammability Rating	Connector Style	Mounting Type	Termination
MH Connectors 580-M25-203L002	Gold	Black	Brass	Signal	0.043	0.05	60 VDC	2	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	2 A	Housing/Shell (Unthreaded)	125 °C	-40 °C	Nickel Plated Zinc Alloy	26 AWG	Receptacle Female Sockets	Shielded	UL94 V-0	D-Type Micro-D
MH Connectors 580-M25-113L002	Gold	Black	Brass	Signal	0.043	0.05	60 VDC	2	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	2 A	Housing/Shell (Unthreaded)	125 °C	-40 °C	Nickel Plated Zinc Alloy		Male Pins Plug	Shielded	UL94 V-0	D-Type Micro-D	Panel Mount Through Hole	Solder
MH Connectors 580-M25-113L001	Gold	Black	Brass	Signal	0.043	0.05	60 VDC	2	0.38 µm	15 µin	Liquid Crystal Polymer (LCP)	2 A	Housing/Shell (Unthreaded)	125 °C	-40 °C	Nickel Plated Zinc Alloy		Male Pins Plug	Shielded	UL94 V-0	D-Type Micro-D	Panel Mount Through Hole	Solder
MH Connectors 580-M25-213L001	Gold	Black	Brass	Signal	0.043	0.05	60 VDC	2	0.38 µm	15 µin	Liquid Crystal Polymer (LCP)	2 A	Housing/Shell (Unthreaded)	125 °C	-40 °C	Nickel Plated Zinc Alloy		Receptacle Female Sockets	Shielded	UL94 V-0	D-Type Micro-D	Panel Mount Through Hole	Solder
MH Connectors 580-M25-203L001	Gold	Black	Brass	Signal	0.043	0.05	60 VDC	2	0.38 µm	15 µin	Liquid Crystal Polymer (LCP)	2 A	Housing/Shell (Unthreaded)	125 °C	-40 °C	Nickel Plated Zinc Alloy	26 AWG	Receptacle Female Sockets	Shielded	UL94 V-0	D-Type Micro-D
MH Connectors 580-M25-103L001	Gold	Black	Brass	Signal	0.043	0.05	60 VDC	2	0.38 µm	15 µin	Liquid Crystal Polymer (LCP)	2 A	Housing/Shell (Unthreaded)	125 °C	-40 °C	Nickel Plated Zinc Alloy	26 AWG	Male Pins Plug	Shielded	UL94 V-0	D-Type Micro-D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 49.00
		10	$ 37.94
		25	$ 34.43
		70	$ 31.00
		140	$ 28.95
		280	$ 27.10

Description

General part information

580-M25 Series

25 Position D-Type, Micro-D Plug, Male Pins Connector
