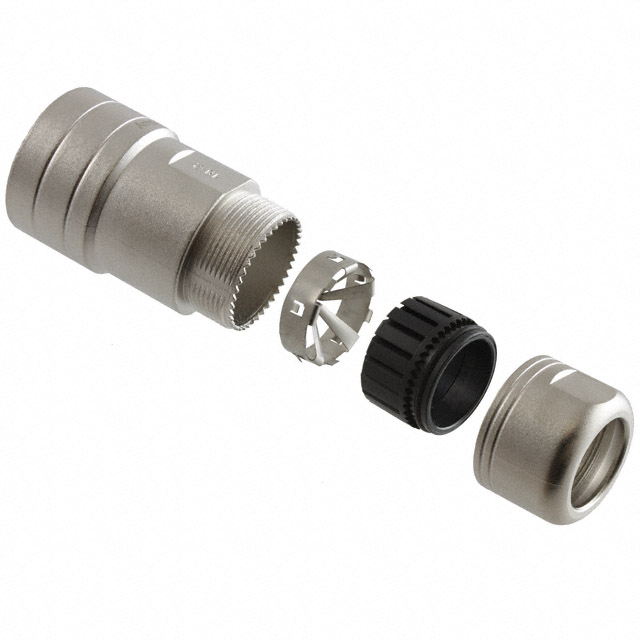

RT0L-18CG-S2

Obsolete

Amphenol Sine Systems Corp

CABLE GRP 13.5-16.99MM 1 1/16-18

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CABLE GRP 13.5-16.99MM 1 1/16-18

Technical Specifications

Parameters and characteristics for this part

Specification	RT0L-18CG-S2

Color	Gray
Includes	Gasket, EMC Grounding Ring, Seal, Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	13.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.531 in
Thread Size	1 1/16-18
Type	Cable Grip

Part	Type	Ingress Protection	Thread Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Amphenol Sine Systems Corp RT0L-18CG-S2	Cable Grip	IP67 - Dust Tight Waterproof	1 1/16-18	Zinc	13.5 mm	0.531 in	16.99 mm	0.669 in	Gray	EMC Grounding Ring Gasket Nut Seal
Amphenol Sine Systems Corp RT0L-10CG-S1	Cable Grip	IP67 - Dust Tight Waterproof	9/16-24	Zinc	3 mm	0.118 in	6.5 mm	0.256 "	Gray	EMC Grounding Ring Gasket Nut Seal
Amphenol Sine Systems Corp RT0L-12CG-S1	Cable Grip	IP67 - Dust Tight Waterproof	11/16-24	Zinc	6 mm	0.236 in			Gray	EMC Grounding Ring Gasket Nut Seal	0.413 in	10.5 mm
Amphenol Sine Systems Corp RT0L-18CG-S1	Cable Grip	IP67 - Dust Tight Waterproof	1 1/16-18	Zinc	9 mm	0.354 in	14.5 mm	0.571 in	Gray	EMC Grounding Ring Gasket Nut Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Grip Zinc 1 1/16-18 Gray
