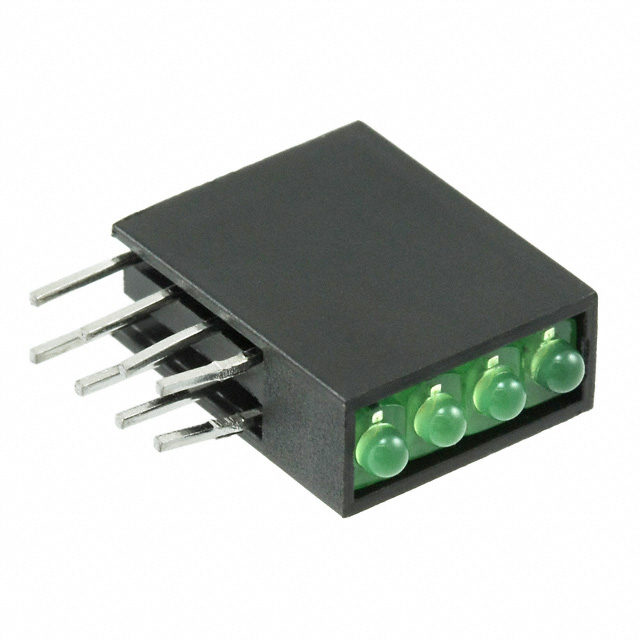

Specification	H485CGDL

Color	Green
Color Count	4 count
Configuration	High
Configuration Count	4
Lens Diameter	1.8 mm
Lens Style	Round, Domed Top
Lens Type	Diffused
Millicandela Rating	2 mcd
Mounting Type	Through Hole
Viewing Angle	50 °
Voltage Rating	2.1 V
Wavelength - Peak	568 nm

H485 Series

Part	Lens Diameter	Voltage Rating	Millicandela Rating	Color Count	Color	Lens Type	Current	Wavelength - Peak	Configuration Count	Configuration	Viewing Angle	Lens Style	Current Colors	Current (Green)	Current (Red)	Voltage Rating (Green)	Voltage Rating - Color	Voltage Rating (Red)	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Green)	Wavelength - Peak (2)	Wavelength - Peak (1)	Current (Yellow)	Millicandela Rating (Yellow)	Voltage Rating (Yellow)	Mounting Type	Millicandela Rating (Amber)	Current (Amber)	Wavelength - Peak (4)	Wavelength - Peak (3)
Bivar Inc. H485CHD-RP	1.8 mm	2 V	5 mcd	4 count	Red	Diffused	150 mA	635 nm	4	High	70 °	Domed Top Round
Bivar Inc. H485CAD	1.8 mm	2 V	20 mcd	4 count	Amber	Diffused	20 mA	605 nm	4	High	50 °	Domed Top Round
Bivar Inc. H485CHHGGDL	1.8 mm			2 count 2 count	Green Red	Diffused			4	High	50 °	Domed Top Round	Green Red	2 mA	2 mA	2.1 V	Green Red	2 V	Green Red	2 mcd	2 mcd	625 nm	568 nm
Bivar Inc. H485CHDL	1.8 mm	2 V	2 mcd	4 count	Red	Diffused	2 mA	625 nm	4	High	50 °	Domed Top Round
Bivar Inc. H485CYGGGD	1.8 mm			1 count 3 count	Green Yellow	Diffused			4	High	50 °	Domed Top Round	Green Yellow	20 mA		2.1 V	Green Yellow		Green Yellow		20 mcd	590 nm	568 nm	20 mA	10 mcd	2 V
Bivar Inc. H485CGDL	1.8 mm	2.1 V	2 mcd	4 count	Green	Diffused		568 nm	4	High	50 °	Domed Top Round															Through Hole
Bivar Inc. H485CHYGAD	1.8 mm	2 V		1 count 1 count 1 count 1 count	Amber Green Red Yellow	Diffused			4	High	50 °	Domed Top Round	Amber Green Red Yellow	20 mA	20 mA	2.1 V	Amber Green Red Yellow	2 V	Amber Green Red Yellow	20 mcd	20 mcd	568 nm	605 nm	20 mA	10 mcd	2 V		20 mcd	20 mA	590 nm	625 nm
Bivar Inc. H485CHGGGDL	1.8 mm			1 count 3 count	Green Red	Diffused			4	High	50 °	Domed Top Round	Green Red	2 mA	2 mA	2.1 V	Green Red	2 V	Green Red	2 mcd	2 mcd	625 nm	568 nm
Bivar Inc. H485CGD-RP	1.8 mm	2.2 V	5 mcd	4 count	Green	Diffused	150 mA	565 nm	4	High	70 °	Domed Top Round
Bivar Inc. H485CHHGGD	1.8 mm			2 count 2 count	Green Red	Diffused			4	High	50 °	Domed Top Round	Green Red	20 mA	20 mA	2.1 V	Green Red	2 V	Green Red	20 mcd	20 mcd	625 nm	568 nm
