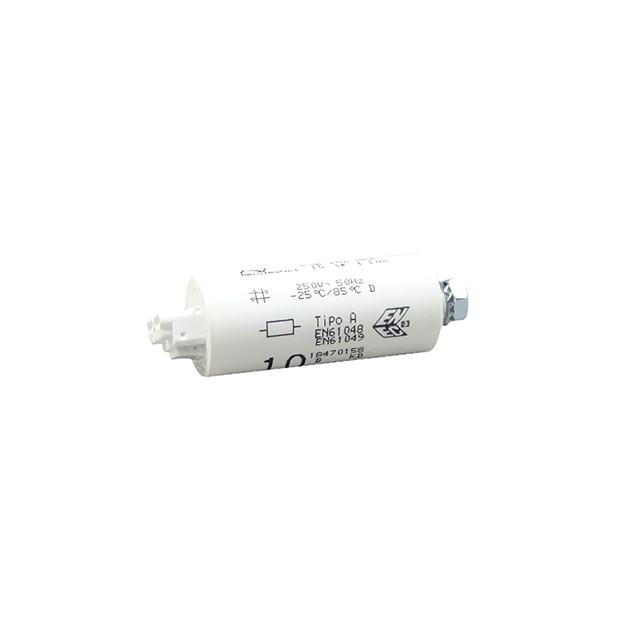

C3B2AD45100B20K
ObsoleteKEMET
CAP FILM 10UF 10% 250VAC SCREW
Deep-Dive with AI
Search across all available documentation for this part.
C3B2AD45100B20K
ObsoleteKEMET
CAP FILM 10UF 10% 250VAC SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3B2AD45100B20K |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) [Max] [z] | 71.5 mm |
| Height - Seated (Max) [Max] [z] | 2.815 in |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension [diameter] | 30 mm |
| Size / Dimension [diameter] | 1.181 inches |
| Termination | Screw Terminals |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.01 | |
| 10 | $ 10.18 | |||
| 50 | $ 8.81 | |||
Description
General part information
C3B2AD Series
10 µF Film Capacitor 250V Polypropylene (PP) Radial, Can - Screw Terminals
Documents
Technical documentation and resources
No documents available
