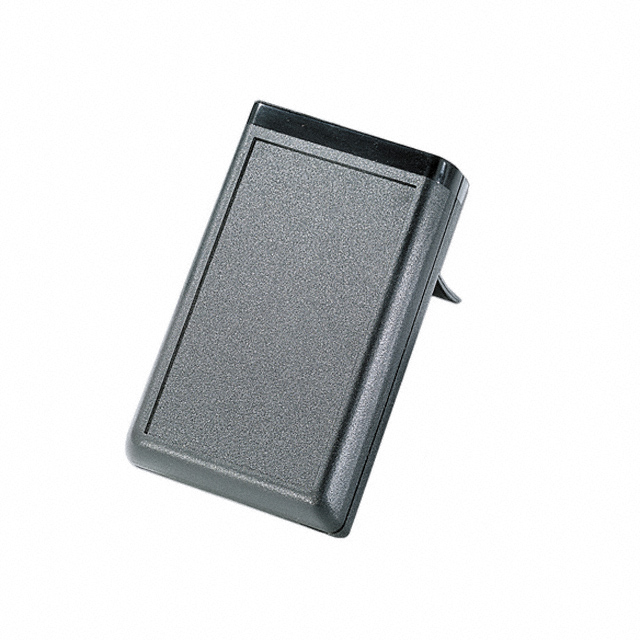

BOS 400 ASC

Active

Bopla Enclosures

BOX ABS BLACK 3.94"L X 2.56"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ABS BLACK 3.94"L X 2.56"W

Technical Specifications

Parameters and characteristics for this part

Specification	BOS 400 ASC

Area (L x W)	65 cm˛
Area (L x W)	10.1 in˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, Pocket Clip
Features	9 V
Height [z]	24 mm
Height [z]	0.945 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.937 in
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.559 in
Weight	3.42 g
Weight	0.12 oz

BOX ABS BLACK 3.94"L X 2.56"W

Part	Features	Features	Ratings	Material	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Weight	Weight	Design	Color
Bopla Enclosures BOS 400 ASC	Battery Compartment, Pocket Clip	9 V	IP40	Plastic, ABS	UL94 HB	65 mm	2.559 in	100 mm	3.937 in	Box	65 cm˛	10.1 in˛	24 mm	0.945 in	3.42 g	0.12 oz	Hand Held, Split Sides	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.25

General part information

Box Plastic, ABS Black Hand Held, Split Sides 3.937" L x 2.559" W (100.00mm x 65.00mm) X 0.945" (24.00mm)
