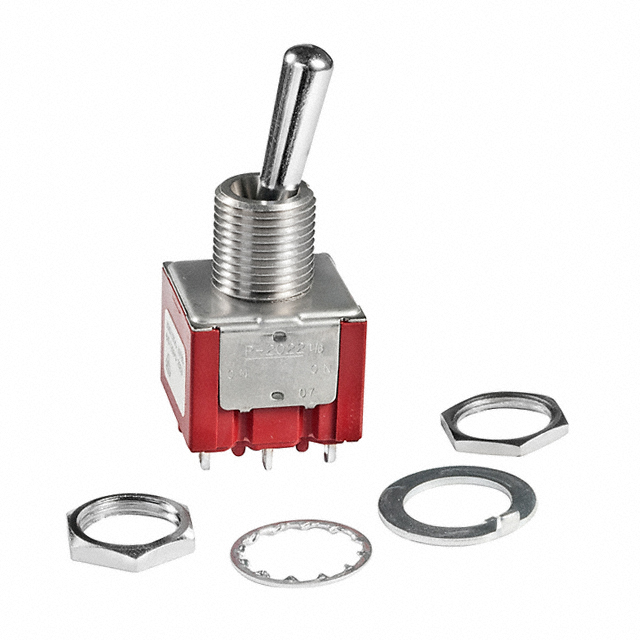

P2022BP

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 10A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	P2022BP

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Electrical Life	Current Rating (Amps)	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Voltage Rating - AC	Bushing Thread	Bushing Thread	Illumination	Actuator Length [x]	Actuator Type	Switch Function
NKK Switches P2022BP	12.5 mm	25000 Steps	10 A	Brass Chrome Plated	-10 °C	85 °C	DPDT	PC Pin	125 V	M12	1 x 1	Non-Illuminated	17.5 mm	Standard Round	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
