1437388-2

Obsolete

TE Connectivity AMP Connectors

CONN TERM STRIP 12CIRC 0.315"

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN TERM STRIP 12CIRC 0.315"

Technical Specifications

Parameters and characteristics for this part

Specification	1437388-2

Barrier Type	Enclosed
Bottom Termination	Closed
Color	Natural
Current Rating (Amps)	30 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	12
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-35 °C
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	250 VDC
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

CONN TERM STRIP 12CIRC 0.315"

Part	Number of Rows	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Terminal Block Type	Terminal Screw Finish	Terminal Screw Material	Bottom Termination	Material - Insulation	Top Termination	Current Rating (Amps)	Voltage Rating	Number of Circuits	Barrier Type
TE Connectivity AMP Connectors 1437388-2	2	UL94 V-0	-35 °C	100 °C	Natural	12 AWG	24 AWG	Chassis, Panel	Eurostyle Terminal Strip	Chromate, Zinc	Steel	Closed	Polyamide (PA66), Nylon 6/6	Screws	30 A	250 VDC	12	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

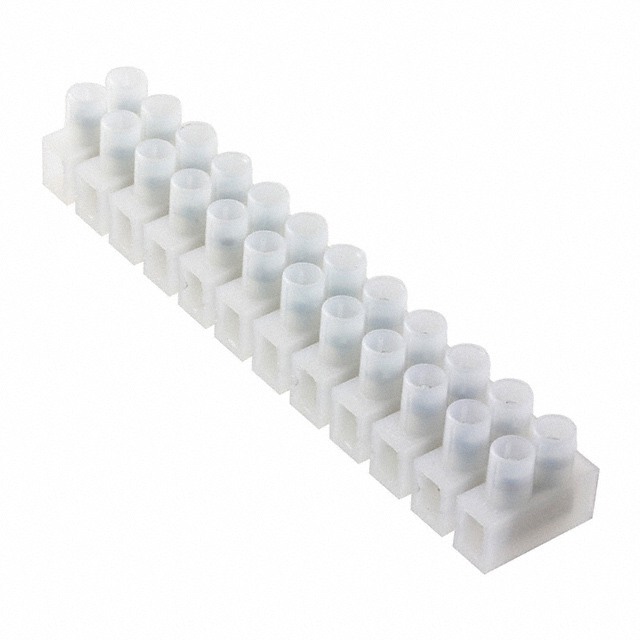

12 Circuit 0.315" (8.00mm) Eurostyle Terminal Strip Connector Screws
