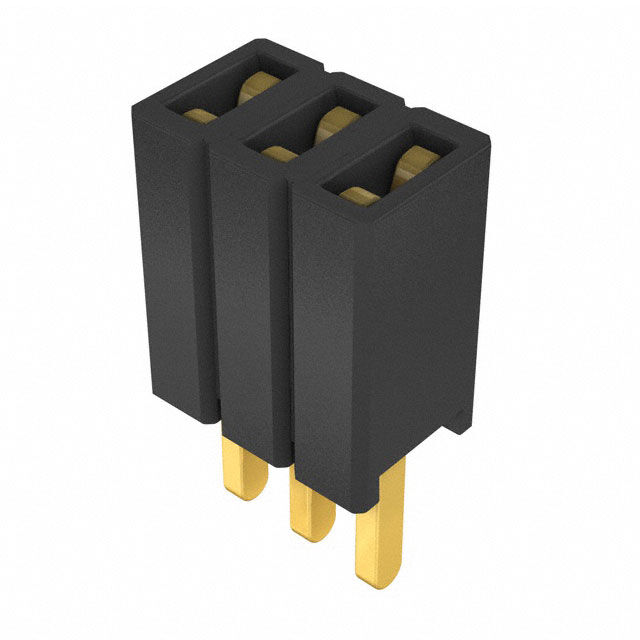

SLM-101-01-G-D

Active

Samtec Inc.

.050 MICRO STRIPS

Search across all available documentation for this part.

Active

Samtec Inc.

.050 MICRO STRIPS

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-101-01-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Connector Type	Mounting Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Mating	Insulation Color	Number of Positions	Fastening Type	Termination	Insulation Material	Contact Finish - Post	Contact Shape	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SLM-101-01-S-D	-55 °C	125 °C	4.57 mm	0.18 "	Forked	Receptacle	Through Hole	Phosphor Bronze	30 Áin	0.76 Ám	2.92 mm	0.115 in	2.54 mm	0.1 in	All	Gold	Black	2	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	Tin	Rectangular	2
Samtec Inc. SLM-101-01-G-D	-55 °C	125 °C	4.57 mm	0.18 "	Forked	Receptacle	Through Hole	Phosphor Bronze	20 µin	0.51 µm	2.92 mm	0.115 in	2.54 mm	0.1 in	All	Gold	Black	2	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	Gold	Rectangular	2	3 µin	0.076 µm
Samtec Inc. SLM-101-01-S-S	-55 °C	125 °C	4.57 mm	0.18 "	Forked	Receptacle	Through Hole	Phosphor Bronze	30 Áin	0.76 Ám	2.92 mm	0.115 in			All	Gold	Black	1	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	Tin	Rectangular	1
Samtec Inc. SLM-101-01-L-S	-55 °C	125 °C	4.57 mm	0.18 "	Forked	Receptacle	Through Hole	Phosphor Bronze	10 çin	0.25 çm	2.92 mm	0.115 in			All	Gold	Black	1	Push-Pull	Solder	Liquid Crystal Polymer (LCP)	Tin	Rectangular	1
