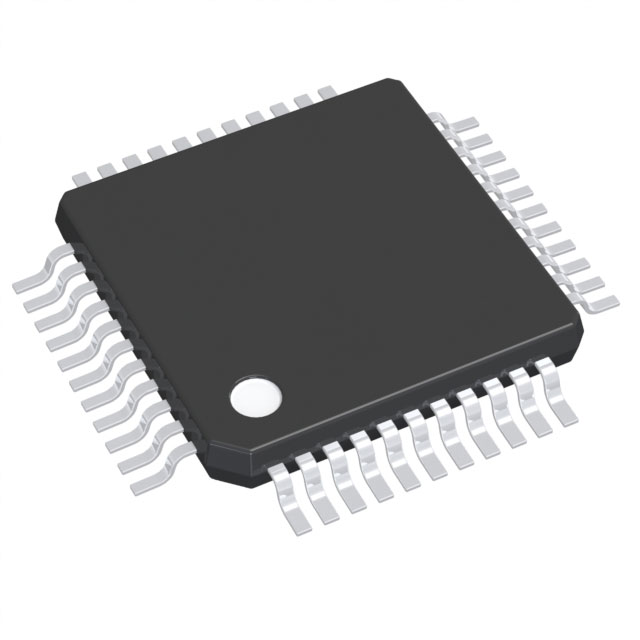

CY90F387SPMCR-G-JNE1
ObsoleteInfineon Technologies
IC MCU 16BIT 64KB FLASH 48LQFP
Deep-Dive with AI
Search across all available documentation for this part.
CY90F387SPMCR-G-JNE1
ObsoleteInfineon Technologies
IC MCU 16BIT 64KB FLASH 48LQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CY90F387SPMCR-G-JNE1 |
|---|---|
| Connectivity | UART/USART, CANbus, SCI |
| Core Processor | F²MC-16LX |
| Core Size | 16-Bit |
| Data Converters [custom] | 8 |
| Data Converters [custom] | 10 |
| Mounting Type | Surface Mount |
| Number of I/O | 36 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |
| Package / Case | 48-LQFP |
| Peripherals | WDT, POR |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 16 MHz |
| Supplier Device Package | 48-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3.5 V |
CY90F387 Series
| Part | Mounting Type | Program Memory Type | Operating Temperature [Max] | Operating Temperature [Min] | Core Processor | Connectivity | Package / Case | Peripherals | Oscillator Type | Supplier Device Package | Program Memory Size | Core Size | Number of I/O | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Speed | Data Converters | RAM Size | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 36 | 5.5 V | 3.5 V | 16 MHz | A/D 8x8/10b | 2K x 8 | ||
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 34 | 5.5 V | 3.5 V | 16 MHz | A/D 8x8/10b | 2K x 8 | ||
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 36 | 5.5 V | 3.5 V | 16 MHz | 2K x 8 | 8 | 10 | |
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 36 | 5.5 V | 3.5 V | 16 MHz | A/D 8x8/10b | 2K x 8 | ||
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 36 | 5.5 V | 3.5 V | 16 MHz | A/D 8x8/10b | 2K x 8 | ||
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 36 | 5.5 V | 3.5 V | 16 MHz | A/D 8x8/10b SAR | 2K x 8 | ||
Infineon Technologies | Surface Mount | FLASH | 105 °C | -40 °C | F²MC-16LX | CANbus SCI UART/USART | 48-LQFP | POR WDT | External | 48-LQFP (7x7) | 64 KB | 16-Bit | 36 | 5.5 V | 3.5 V | 16 MHz | A/D 8x8/10b SAR | 2K x 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CY90F387 Series
F²MC-16LX F²MC-16LX MB90385 Microcontroller IC 16-Bit 16MHz 64KB (64K x 8) FLASH 48-LQFP (7x7)
