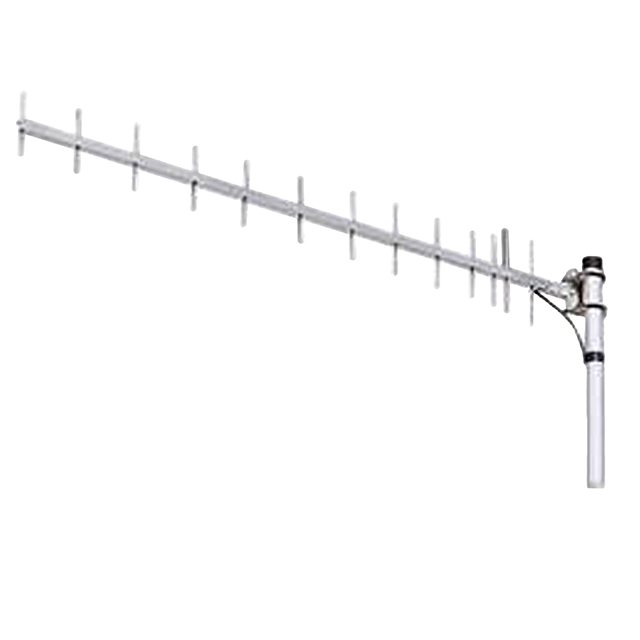

PC9013N
ActiveTE Connectivity Raychem Cable Protection
YAGI,FWA,12IN,NF 902-928MHZ,13DBD
Deep-Dive with AI
Search across all available documentation for this part.
PC9013N
ActiveTE Connectivity Raychem Cable Protection
YAGI,FWA,12IN,NF 902-928MHZ,13DBD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PC9013N |
|---|---|
| Antenna Type | Yagi, 13-Element |
| Applications | GSM |
| Features | 483 mm |
| Features | Cable |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz |
| Frequency Range [Min] | 902 MHz |
| Gain | 13 dBi |
| Height (Max) | 135.9 cm |
| Height (Max) [Max] | 53.504 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 200 W |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PC9013 Series
Yagi Antenna, Single Band, ISM / LoRaWAN, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Single Port, > 6 dBi Peak Gain, PC Series
