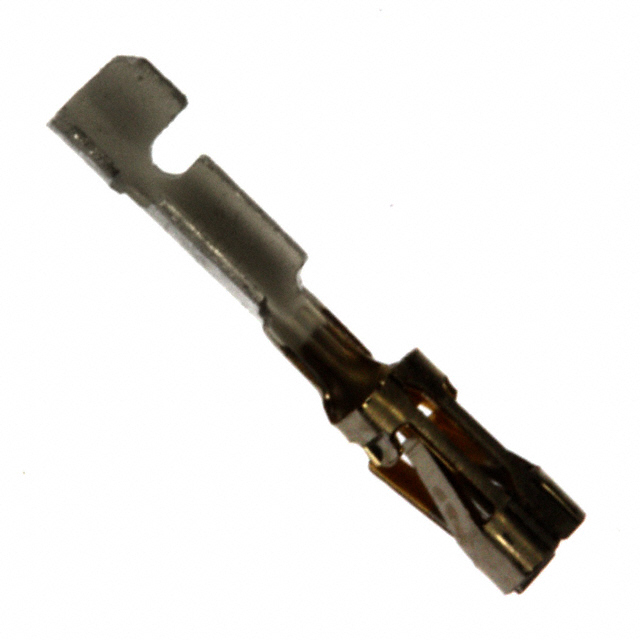

5-102920-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 27-32AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-102920-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 27-32AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-102920-1 | 102920 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 27 AWG | 27 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.38 | |||
| 2500 | $ 0.36 | |||
| Tape & Reel (TR) | 12500 | $ 0.29 | ||
| 25000 | $ 0.27 | |||
| 37500 | $ 0.26 | |||
102920 Series
CONN SOCKET 27-32AWG CRIMP GOLD
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish | Contact Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102920-2 | 27 AWG | 32 AWG | Socket | Gold | Crimp | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors 5-102920-1 | 27 AWG | 32 AWG | Socket | Gold | Crimp | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors 102920-1 | 27 AWG | 32 AWG | Socket | Gold | Crimp | 0.76 Ám | 30 Áin |
Description
General part information
102920 Series
Socket Contact Gold 27-32 AWG Crimp
