KOA Speer Electronics, Inc.

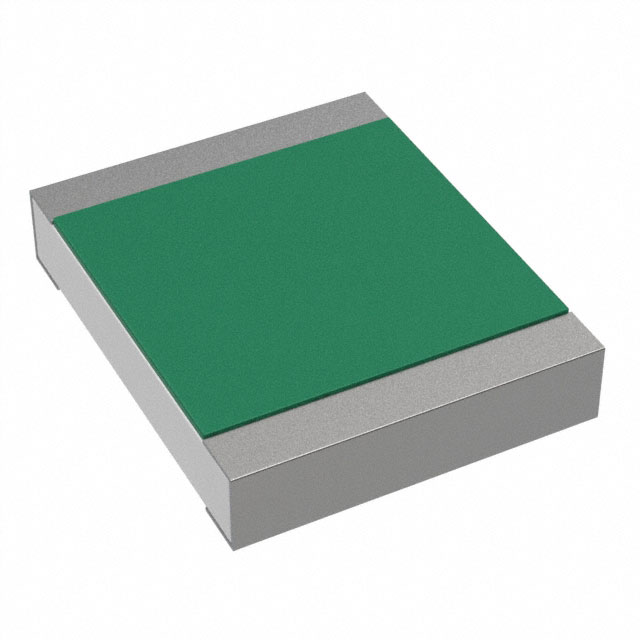

RES THICK FILM 1210 2.74 OHM 1% 0.5W(1/2W) ±200PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200

SG73P2ETTD2R74F

Active

KOA Speer Electronics, Inc.

RES THICK FILM 1210 2.74 OHM 1% 0.5W(1/2W) ±200PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200

Description Specifications Series Pricing CAD Documents

Description

General part information

SG73P2E Series

2.74 Ohms ±1% 0.75W, 3/4W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film

Technical Specifications

Parameters and characteristics for this part

Specification	SG73P2ETTD2R74F

Composition	Thick Film
Features	Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max)	0.028 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	1210 (3225 Metric)
Package Name	1210
Power (Watts)	750 mW
Power (Watts) Options	3/4W
Ratings	AEC-Q200
Resistance	2.74 Ohms
Size / Dimension Length	0.126 in
Size / Dimension Width	0.102 in
Temperature Coefficient	200 ppm/°C
Tolerance	1 %

SG73P2E Series

...

Part	Tolerance	Package Name	Power (Watts)	Power (Watts) Options	Composition	Size / Dimension Length	Size / Dimension Width	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Features	Package / Case	Temperature Coefficient	Number of Terminations	Ratings
KOA Speer Electronics, Inc. SG73P2ETTD8662F	1 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	86.6 kOhm	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ETTD5763D	0.5 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	576 kOhm	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ETTD6490D	0.5 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	649 Ohm	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ERTTD3831F	1 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	3.83 kOhm	155 °C	-55 °C	0.028 in	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ETTD2212D	0.5 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	22.1 kOhm	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ERTTD1201F	1 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	1.2 kOhm	155 °C	-55 °C	0.028 in	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ERTTD7502D	0.5 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	75 kOhm	155 °C	-55 °C	0.028 in	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ETTD8R45F	1 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	8.45 Ohms	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ETTD2R74F	1 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	2.74 Ohms	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200
KOA Speer Electronics, Inc. SG73P2ETTD1R82F	1 %	1210	750 mW	3/4W	Thick Film	0.126 in	0.102 in	1.82 Ohms	155 °C	-55 °C	0.028 in	Automotive AEC-Q200 Pulse Withstanding	1210 (3225 Metric)	200 ppm/°C	2	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SG73P2ETTD2R74F | Datasheet
