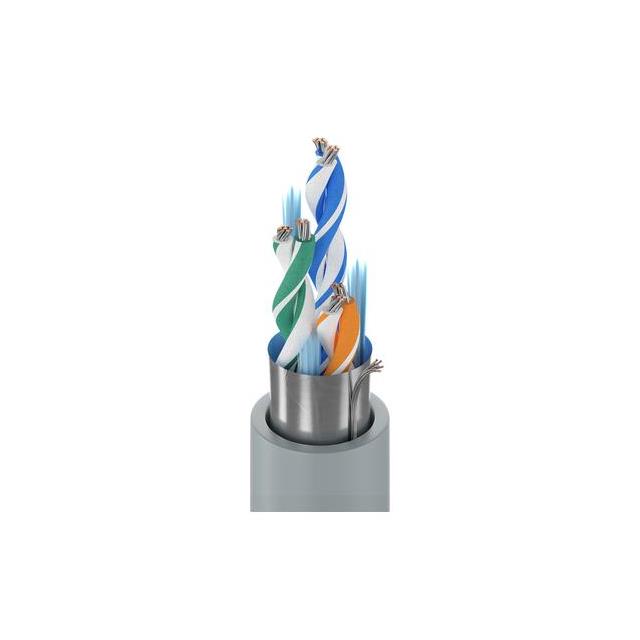

1420A 0601000
ActiveBelden Inc.
MULTI-PAIR 6COND 24AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1420A 0601000
ActiveBelden Inc.
MULTI-PAIR 6COND 24AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1420A 0601000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Chrome |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Wire Gauge | 24 AWG |
1420A Series
| Part | Wire Gauge | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Features | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket Color | Cable Type | Shield Material | Shield Coverage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket (Insulation) Material | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | 24 AWG | Copper Tinned | -20 C | 80 C | UL Style 2919 | Drain Wire | Foil | 32 AWG | 7 | Computer | Chrome | Multi-Pair | Aluminum | 100 % | 6 | 0.889 mm | 0.035 in | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m | ||
Belden Inc. | 24 AWG | Copper Tinned | -20 C | 80 C | UL Style 2919 | Drain Wire | Foil | 32 AWG | 7 | Computer | Chrome | Multi-Pair | Aluminum | 100 % | 6 | 0.889 mm | 0.035 in | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | 3048 m | 10000 ft | ||
Belden Inc. | 24 AWG | Copper Tinned | -20 C | 80 C | UL Style 2919 | Drain Wire | Foil | 32 AWG | 7 | Computer | Chrome | Multi-Pair | Aluminum | 100 % | 6 | 0.889 mm | 0.035 in | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | 500 ' | 152.4 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 2.04 | |
Description
General part information
1420A Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 1000.0' (304.8m)
