BQ25872EVM-813
ActiveCOMPLETE CHARGER EVALUATION MODU
Deep-Dive with AI
Search across all available documentation for this part.
BQ25872EVM-813
ActiveCOMPLETE CHARGER EVALUATION MODU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25872EVM-813 | BQ25872 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Charge Current - Max | - | 7 A |
| Current - Charging | - | Constant |
| Fault Protection | - | Over Temperature, Over Voltage, Reverse Current, Over Current |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 42-UFBGA, DSBGA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 42-DSBGA |
| Supplier Device Package | - | 2.5 |
| Supplier Device Package | - | 2.8 |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25872 | BQ25872 |
| Voltage - Supply (Max) | - | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 50.31 | |
| DigiKey | Bulk | 1 | $ 100.98 | |
| Digikey | Bulk | 1 | $ 100.98 | |
| Mouser Electronics | N/A | 1 | $ 131.67 | |
| 5 | $ 131.66 | |||
| Verical | N/A | 1 | $ 50.31 | |
BQ25872 Series
I2C 1cell 7A battery switch charger with ADC and external OVP controller
| Part | Fault Protection | Mounting Type | Voltage - Supply (Max) [Max] | Battery Chemistry | Current - Charging | Interface | Package / Case | Number of Cells | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Operating Temperature [Max] | Operating Temperature [Min] | Charge Current - Max [Max] | Type | Supplied Contents | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25872YFFT | Over Current, Over Temperature, Over Voltage, Reverse Current | Surface Mount | 6 V | Lithium Ion/Polymer | Constant | I2C | 42-UFBGA, DSBGA | 1 | 42-DSBGA | 2.5 | 2.8 | 85 °C | -40 °C | 7 A | ||||
Texas Instruments BQ25872YFFR | Over Current, Over Temperature, Over Voltage, Reverse Current | Surface Mount | 6 V | Lithium Ion/Polymer | Constant | I2C | 42-UFBGA, DSBGA | 1 | 42-DSBGA | 2.5 | 2.8 | 85 °C | -40 °C | 7 A | ||||

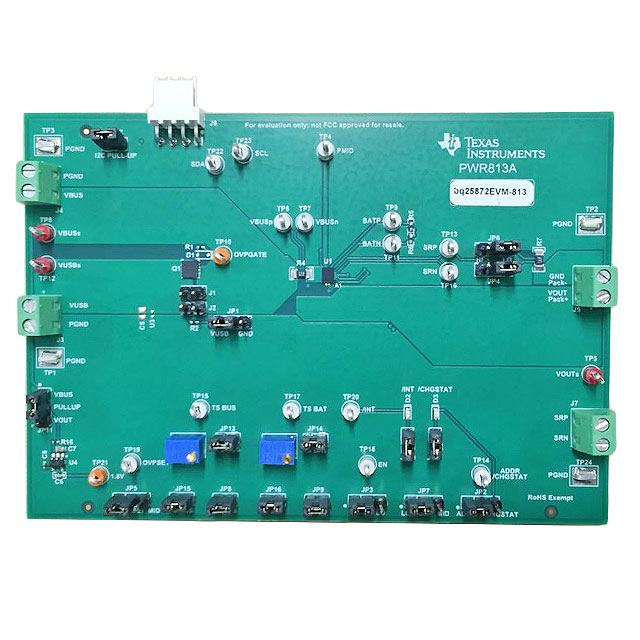

Texas Instruments BQ25872EVM-813 | Power Management | Board(s) | BQ25872 | Battery Charger |
Description
General part information
BQ25872 Series
The device is a 7-A battery switch charger with an integrated 10-bit ADC. The high-current battery switch charger is a 13-mΩ MOSFET with reverse current blocking designed for high efficiency and minimal voltage drop. The high-charge current capability of the device makes it ideal for smartphones, tablets, and other portable devices with large battery capacity.
The integrated 10-bit ADC can measure input voltage and current, battery voltage and current, as well as battery temperature and input connector temperature. This allows the user application to continuously monitor the power input and battery charging parameters to ensure the safety of the battery charging. The flexible OVP and OCP thresholds for VBUS, VOUT, and battery can be modified via I2C registers as the battery goes through constant current (CC) and constant voltage (CV) mode.
The I2C serial interface of the device can operate at speeds up to 1 MHz and allows access to the ADC’s measurements of the different charging parameters and also allows for flexible software control of the device. TheINTpin provides instantaneous feedback to the host in case of a fault condition. I2C status registers allow the host to read the current status of all faults and events.
