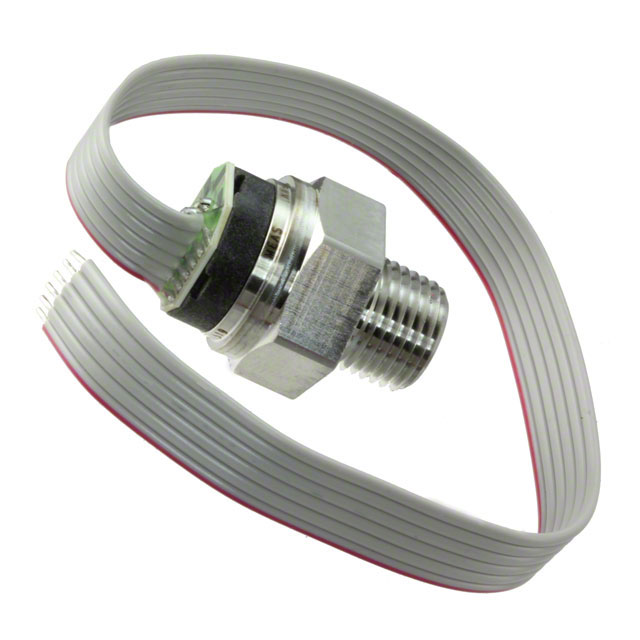

89-05KS-4R
ActiveTE Connectivity Measurement Specialties
SENSOR 5000PSIS 1/4"NPT .125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 89-05KS-4R |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 103421.36 kPa |
| Maximum Pressure [Max] | 15000 PSI |
| Operating Pressure | 34473.79 kPa |
| Operating Pressure | 5000 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 125 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Cylinder |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Sealed Gauge |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 206.95 | |
| 16 | $ 189.70 | |||
Description
General part information
89-05 Series
Pressure Sensor 5000PSI (34473.79kPa) Sealed Gauge Male - 1/4" (6.35mm) NPT 0 mV ~ 125 mV Cylinder
