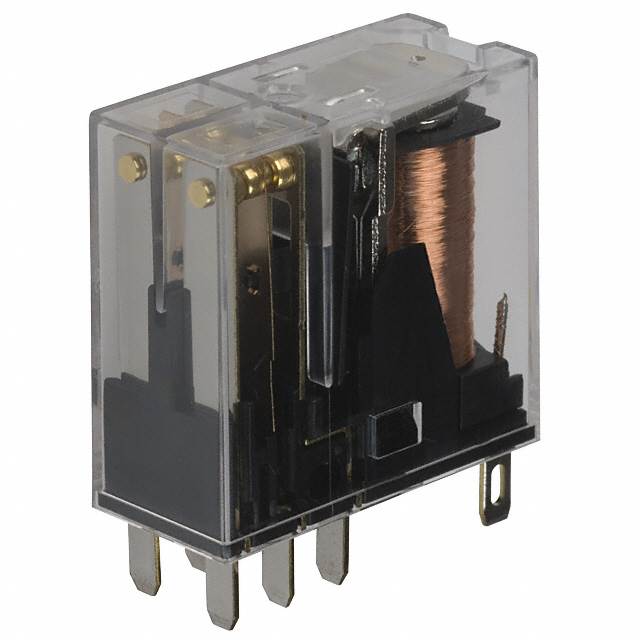

AHN210X1
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
AHN210X1
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 5A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHN210X1 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 9.7 mA |
| Coil Resistance | 12 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1250 VA, 150 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.75 | |
Description
General part information
AHN210 Series
General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
